Shear beam load cell mounts

Shear beam load cell mounts

The ZMX1 is a self-aligning complete with a zinc plated, steel mounting flange. Low profile in design it ensures precise load introduction in applications subject to thermal expansion or vibration. The ZMX1 is widely used in hopper and tank weighing systems, mixing vessel weighing systems.


Features:
Capacity 0.05t-20t
Shear beam load cell
Easy installation

Nickel plated alloy steel


Optional features:
Stainless steel construction


  • Product Detail
  • Technical Specifications
The ZMX1 weigh module is designed for shear beam load cells up to 20t capacities. Their typical features are low profile design and balanced load transfer. The Weighing module offers perfect solution especially for tanks, silos, high capacity conveyor scales.

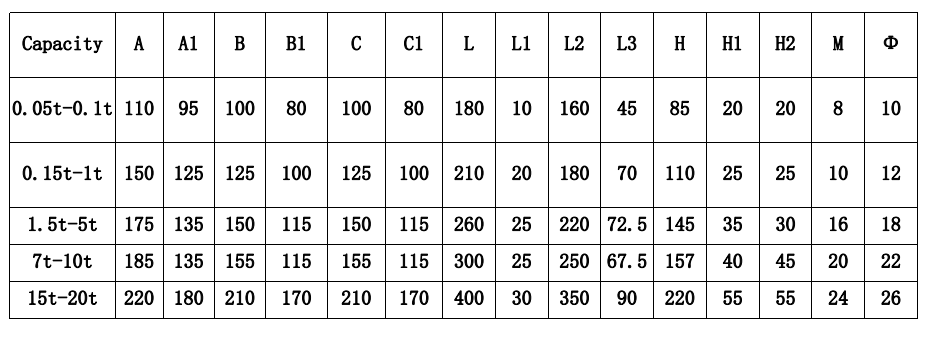

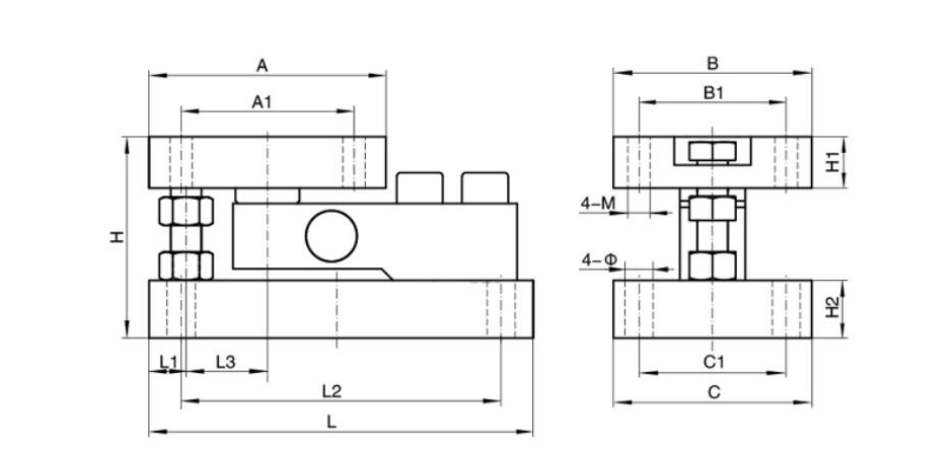

Dimensions in mm


PARAMETER

VALUE

UNIT

Standard capacities (Emax)

0.05-20

T

Rated output-R.O.

2.0

mV/V

Zero balance

1

±% of rated output

Non linearity

0.03

±% of rated output

Hysteresis

0.03

±% of rated output

Non-repeatability

0.02

±% of rated output

Creep error (30 minutes)

0.03

±% of rated output

Zero return (30 minutes)

0.03

±% of rated output

Temperature effect on min. dead load output

0.0026

±% of rated output/℃

Temperature effect on sensitivity

0.0015

±% of rated output/℃

Compensated temperature range

-10 to +40

Operating temperature range

-20 to +60

Safe overload

150

% of R.C

Ultimate overload

200

% of R.C

Excitation, recommended

10

Vdc

Excitation, maximum

15

Vdc

Input resistance

370±20

Ohms

Output resistance

350±3

Ohms

Insulation resistance

5000

Mega-Ohms

Material

Alloy steel


Protection class

IP67
