Brake pedal force sensor

Brake pedal force sensor

The ZMMC2 brake pedal force sensor is designed to measure load applied to the brake, accelerator or clutch pedal. Zhimin's brake pedal load cells  are manufactured to be of excellent quality, so that your application will be reliable, durable, accurate and precise.



Features:
Capacity 500-2000N
High accuracy
Low profile

Nickel plated alloy steel


Optional features:
Optional output(4-20mA,0-5V)


  • Product Detail
  • Technical Specifications
The ZMMC2 brake pedal force sensor is designed to measure load applied to the brake, accelerator or clutch pedal. Thanks to its low-profile design, large contact area and universal mounting bracket, the sensor is easy to install and remove. A high overload protection also prevents damage in the event of an emergency stop.

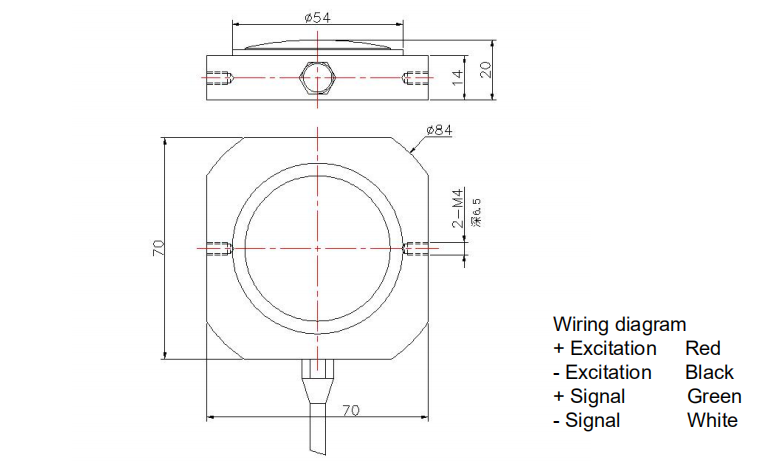

Dimensions in mm

PARAMETER

VALUE

UNIT

Standard capacities (Emax)

500-2000

N

Rated output-R.O.

2.0

mV/V

Zero balance

1

±% of rated output

Non linearity

0.1

±% of rated output

Hysteresis

0.05

±% of rated output

Non-repeatability

0.05

±% of rated output

Creep error (30 minutes)

0.05

±% of rated output

Zero return (30 minutes)

0.05

±% of rated output

Temperature effect on min. dead load output

0.0026

±% of rated output/℃

Temperature effect on sensitivity

0.0015

±% of rated output/℃

Compensated temperature range

-10 to +40

Operating temperature range

-20 to +60

Safe overload

150

% of R.C

Ultimate overload

200

% of R.C

Excitation, recommended

10

Vdc

Excitation, maximum

15

Vdc

Input resistance

720±20

Ohms

Output resistance

700±3

Ohms

Insulation resistance

5000

Mega-Ohms

Material

Alloy steel


Protection class

IP65
