Flange to square torque sensor ZMNJF is a non-rotating type torque transducer that converts a torsional mechanical input into an electrical output signal. ZMNJF can be used in both clockwise and counterclockwise direction ranging from 1Nm up to 500Nm. The measuring range and flange/square size can be customized to meet customer’s requirements.



Features:
Capacity 1Nm-500Nm
Static torsion measure
Rational outputs

Nickel plated alloy steel


Optional features:
Hermetically sealed available


  • Product Detail
  • Technical Specifications

Flange to square torque sensor ZMNJF is a non-rotating type torque transducer that converts a torsional mechanical input into an electrical output signal. ZMNJF can be used in both clockwise and counterclockwise direction ranging from 1Nm up to 500Nm. The measuring range and flange/square size can be customized to meet customer’s requirements.

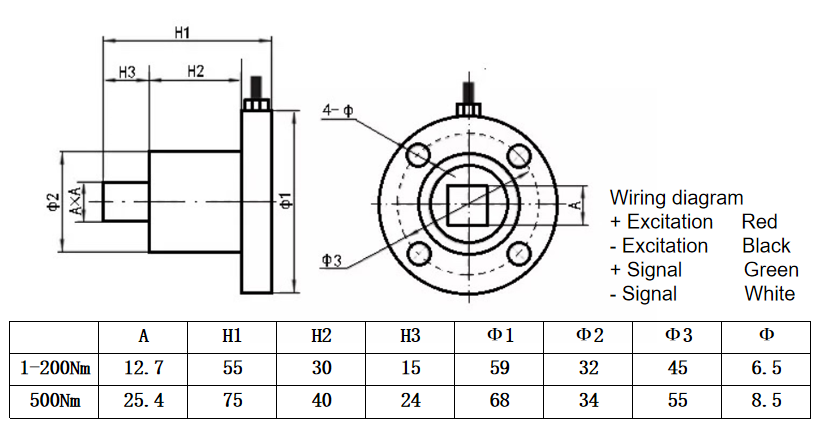

Dimensions in mm


PARAMETER

VALUE

UNIT

Standard capacities (Emax)

1, 2, 5, 10, 20, 50, 100, 200, 500

Nm

Rated output-R.O.

1.0 -2.0

mV/V

Zero balance

1

±% of rated output

Non linearity

0.1

±% of rated output

Hysteresis

0.05

±% of rated output

Non-repeatability

0.03

±% of rated output

Creep error (30 minutes)

0.03

±% of rated output

Zero return (30 minutes)

0.03

±% of rated output

Temperature effect on min. dead load output

0.0026

±% of rated output/℃

Temperature effect on sensitivity

0.0015

±% of rated output/℃

Compensated temperature range

-10 to +40

Operating temperature range

-20 to +60

Safe overload

150

% of R.C

Ultimate overload

200

% of R.C

Excitation, recommended

10

Vdc

Excitation, maximum

15

Vdc

Input resistance

380±10

Ohms

Output resistance

350±3

Ohms

Insulation resistance

5000

Mega-Ohms

Material

Alloy steel


Protection class

IP66
