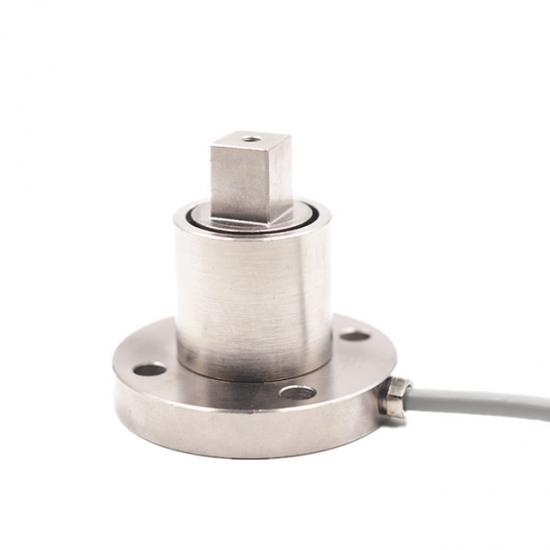

Flange to square torque sensor ZMNJF is a non-rotating type torque transducer that converts a torsional mechanical input into an electrical output signal. ZMNJF can be used in both clockwise and counterclockwise direction ranging from 1Nm up to 500Nm. The measuring range and flange/square size can be customized to meet customer’s requirements. Feat1

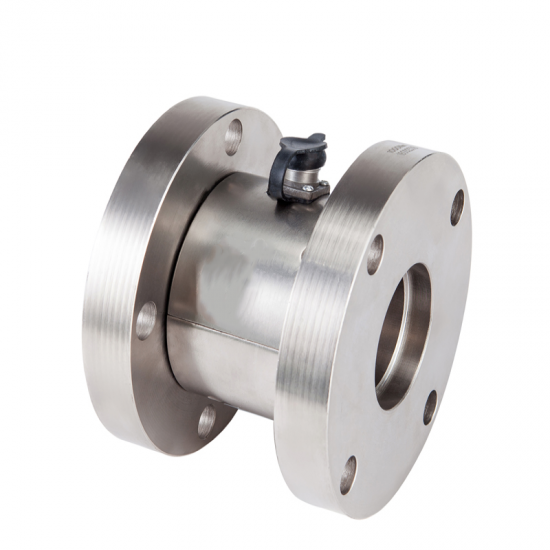

Flange to flange torque sensor ZMFNJ is a non-rotating type torque transducer that converts a torsional mechanical input into an electrical output signal. ZMFNJ can be used in both clockwise and counterclockwise direction ranging from 5Nm up to 10000Nm. The measuring range and dual flange size can be customized to meet customer’s requirements. Feat1
The ZMNJ is a non-rotating type torque transducer that converts a torsional mechanical input into an electrical output signal. The ZMNJ can be used in both clockwise and counterclockwise direction ranging from 1Nm up to 200Nm. The sensor is used in static and non-rotating torsion measure applications. Features: Capacity 1Nm-200Nm Static torsion mea1
The ZMNJF2 is a non-rotating type torque transducer that converts a torsional mechanical input into an electrical output signal. The ZMNJF2 can be used in both clockwise and counterclockwise direction ranging from 1000Nm up to 5000Nm. The sensor is used in static and non-rotating torsion measure applications. Features: Capacity 1000Nm-5000Nm Static1

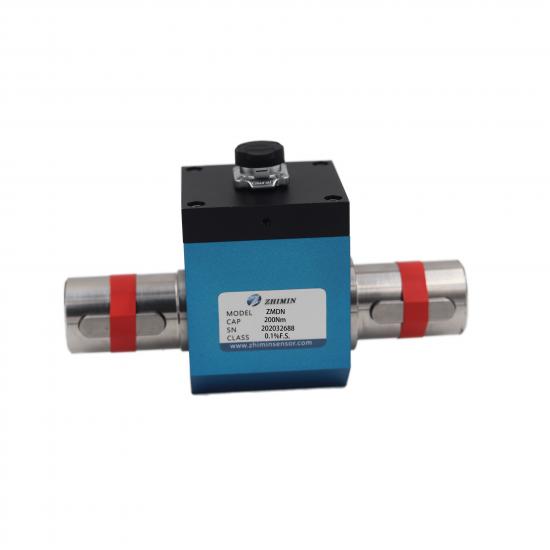

ZMDN is a high-precision rotarting torque sensor. The max rotating speed that the sensor can accept is 3000rpm. The output signal of ZMDN is from 1.0-1.5mv/v. Analog transmitter 4-20mA, 0-5V, 0-10V is optional. Features: Capacity 0.1Nm-500Nm Carbon brush touchable torque sensor Max 3000rpm Stainless steel body Optional features: 4-20mA, 0-5V, 0-10V1
The ZM2DW force sensor F, M utilizes independent wheatstone full bridge for each axis which provides mV/V output proportional to the applied force and requires no mathematical manipulation. Typical applications for this type of transducer are for example force exertion control in robotics, automotive crash testing, industrial test benches, grinding1
The ZMZNJ is dual range shaft torque sensor. The torque sensor measures shaft-shaft type connection, measuring torsion by strain gages. There are both analog and digital output signals available for evaluation. The stainless steel construction is optional. Features: Capacity 100Nm-5000Nm High precision Easy and fast installation Nickel plated1

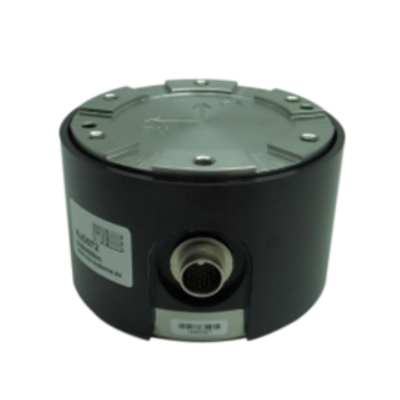

The ZM6DW is 6 axis force torque load cell. The load cell Fxyz and Mxyz utilize independent wheatstone full bridge for each axis which provides mV/V output proportional to the applied force and requires no mathematical manipulation. Typical applications for this type of transducer are for example force exertion control in robotics, autom1
