Single ended shear beam load cell

Single ended shear beam load cell

The ZMXB is a high accuracy, low profile single ended shear beam load cell available in a wide range of capacities. With IP67 protected metric threaded and blind hole types, they are perfect choice for applications such as floor scales, conveyor, hopper and low capacity vessel weighing systems.



Features:
Capacity 50KG-5T
High accuracy
High stability

Nickel plated alloy steel


Optional features:
Load cell foot
Stainless steel construction


  • Product Detail
  • Technical Specifications
The ZMXB is a high accuracy, low profile bending beam available in a wide range of capacities. The ZMXE is widely used in platform weighing machines, pallet truck scales, tank and vessel weighing systems, conveyor scales and patient weighing systems such as intensive care beds and wheelchair scales.

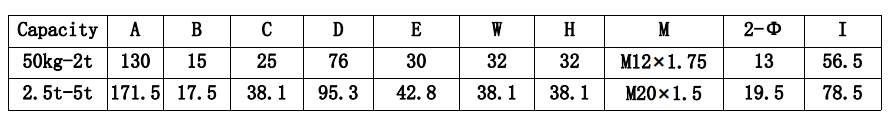

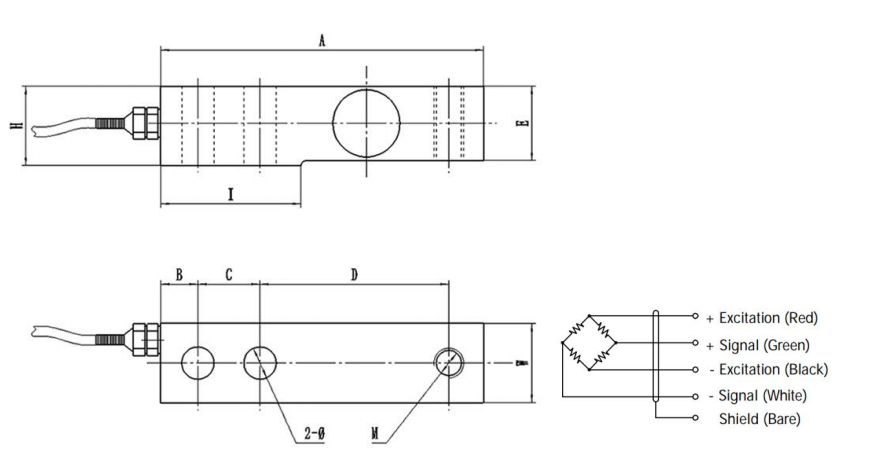

Dimensions in mm

shear beam load cell

PARAMETER

VALUE

UNIT

Standard capacities (Emax)

0.05-5

T

Rated output-R.O.

2.0

mV/V

Zero balance

1

±% of rated output

Non linearity

0.03

±% of rated output

Hysteresis

0.03

±% of rated output

Non-repeatability

0.02

±% of rated output

Creep error (30 minutes)

0.03

±% of rated output

Zero return (30 minutes)

0.03

±% of rated output

Temperature effect on min. dead load output

0.0026

±% of rated output/℃

Temperature effect on sensitivity

0.0015

±% of rated output/℃

Compensated temperature range

-10 to +40

Operating temperature range

-20 to +60

Safe overload

150

% of R.C

Ultimate overload

200

% of R.C

Excitation, recommended

10

Vdc

Excitation, maximum

15

Vdc

Input resistance

370±20

Ohms

Output resistance

350±3

Ohms

Insulation resistance

5000

Mega-Ohms

Material

Alloy steel


Protection class

IP67
