The ZMX7 is bending beam type load cell weight module. With an output signal of 2.0 mV/V, load levels of up to 500kg, accuracy classes up to C3 and high-quality stainless steel, it has a wide range of potential applications.

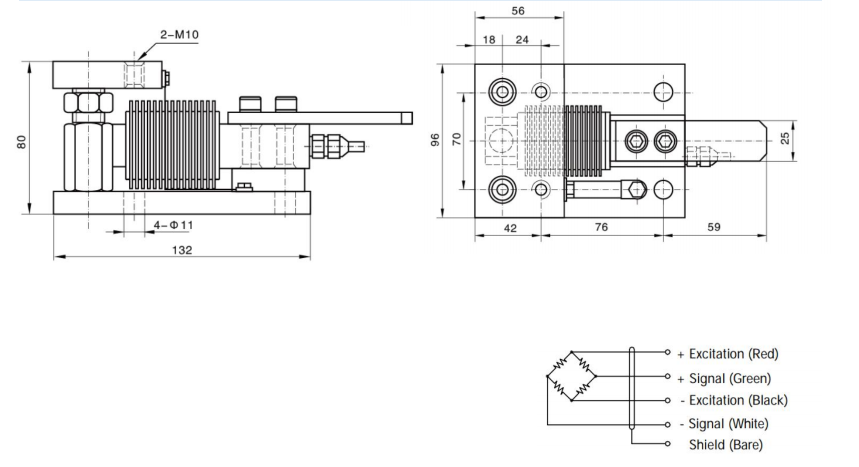

Dimensions in mm
Nickel plated alloy steel
The ZMX7 is bending beam type load cell weight module. With an output signal of 2.0 mV/V, load levels of up to 500kg, accuracy classes up to C3 and high-quality stainless steel, it has a wide range of potential applications.
Dimensions in mm
|
PARAMETER |
VALUE |
UNIT |
|
Standard capacities (Emax) |
5-500 |
KG |
|
Rated output-R.O. |
2.0 |
mV/V |
|
Zero balance |
1 |
±% of rated output |
|
Non linearity |
0.03 |
±% of rated output |
|
Hysteresis |
0.02 |
±% of rated output |
|
Non-repeatability |
0.02 |
±% of rated output |
|
Creep error (30 minutes) |
0.03 |
±% of rated output |
|
Zero return (30 minutes) |
0.03 |
±% of rated output |
|
Temperature effect on min. dead load output |
0.0026 |
±% of rated output/℃ |
|
Temperature effect on sensitivity |
0.0015 |
±% of rated output/℃ |
|
Compensated temperature range |
-10 to +40 |
℃ |
|
Operating temperature range |
-20 to +60 |
℃ |
|
Safe overload |
150 |
% of R.C |
|
Ultimate overload |
200 |
% of R.C |
|
Excitation, recommended |
10 |
Vdc |
|
Excitation, maximum |
15 |
Vdc |
|
Input resistance |
370±20 |
Ohms |
|
Output resistance |
350±3 |
Ohms |
|
Insulation resistance |
5000 |
Mega-Ohms |
|
Material |
Alloy steel |
|
|
Protection class |
IP67 |
|
Hoist ring screw for S type tension load cells
Joint bearing screw for S type tension load cells
The ZMMLB weighing module is designed for spoke type load cells up to 100t capacities. The load cell is with high accuracy and high stability pancake type. Stainless steel construction is optional. Features: Capacity 0.5t-100t Pancake type load cell Easy installation Nickel plated alloy steel Optional features: Stainless steel construction
