S type load cell 100kg 200kg

S type load cell 100kg 200kg

The ZMSAA S type tension load cell offers a wide range of capacities, extending from 10kg to 300kg. Constructed from alloy steel with an electroless nickel-plated surface, it’s a robust and reliable choice. We provide optional amplifer which converts analog sigal into 4-20mA, 0-5V or 0-10V.


Features:
Capacity 10kg-300kg
High accuracy
S beam structure

Nickel plated alloy steel


Optional features:
Optional output(4-20mA,0-5V)

  • Product Detail
  • Technical Specifications
The ZMSAA S type tension load cell offers a wide range of capacities, extending from 10kg to 300kg. Constructed from alloy steel with an electroless nickel-plated surface, it’s a robust and reliable choice. We provide optional amplifer which converts analog sigal into 4-20mA, 0-5V or 0-10V.

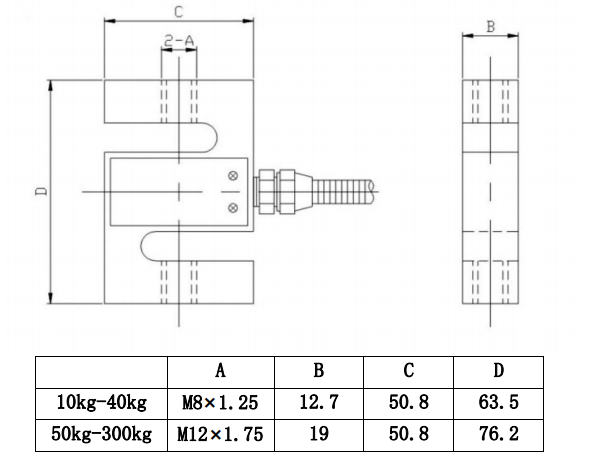

Dimensions in mm


PARAMETER

VALUE

UNIT

Standard capacities (Emax)

10-300

KG

Rated output-R.O.

2.0

mV/V

Zero balance

1

±% of rated output

Non linearity

0.03

±% of rated output

Hysteresis

0.03

±% of rated output

Non-repeatability

0.02

±% of rated output

Creep error (30 minutes)

0.02

±% of rated output

Zero return (30 minutes)

0.03

±% of rated output

Temperature effect on min. dead load output

0.0026

±% of rated output/℃

Temperature effect on sensitivity

0.0015

±% of rated output/℃

Compensated temperature range

-10 to +40

Operating temperature range

-20 to +60

Safe overload

150

% of R.C

Ultimate overload

200

% of R.C

Excitation, recommended

10

Vdc

Excitation, maximum

15

Vdc

Input resistance

370±20

Ohms

Output resistance

350±3

Ohms

Insulation resistance

5000

Mega-Ohms

Material

Alloy steel


Protection class

IP66
