Pancake load cell weigh modules mounting kit

Pancake load cell weigh modules mounting kit

The ZMMLB weighing module is designed for spoke type load cells up to 100t capacities. The load cell is with high accuracy and high stability pancake type. Stainless steel construction is optional.



Features:

Capacity 0.5t-100t
Pancake type load cell
Easy installation

Nickel plated alloy steel


Optional features:
Stainless steel construction


  • Product Detail
  • Technical Specifications

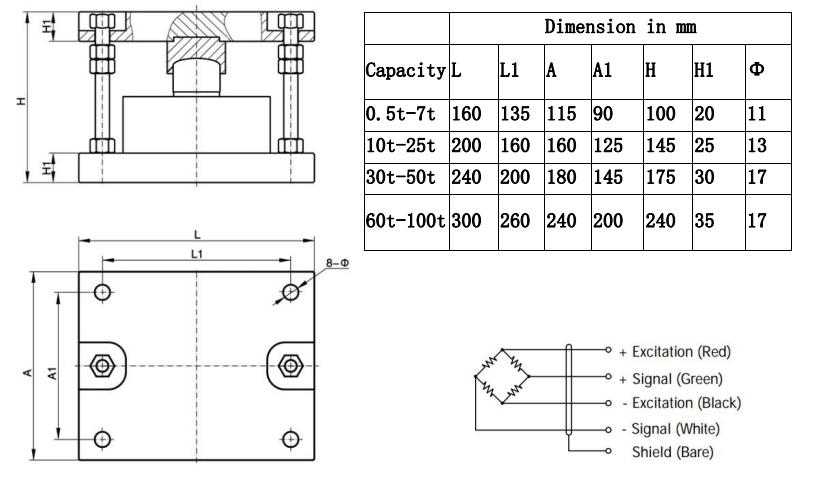

The ZMMLB weigh module is designed for spoke type load cells up to 100t capacities. Their typical features are low profile design and balanced load transfer. The Weighing module offers perfect solution especially for tanks, silos, high capacity conveyor scales. Delivered pre-assembled ensuring ease of installation.



PARAMETER

VALUE

UNIT

Standard capacities (Emax)

0.5-100

T

Rated output-R.O.

2.0

mV/V

Zero balance

1

±% of rated output

Non linearity

0.05

±% of rated output

Hysteresis

0.03

±% of rated output

Non-repeatability

0.02

±% of rated output

Creep error (30 minutes)

0.03

±% of rated output

Zero return (30 minutes)

0.03

±% of rated output

Temperature effect on min. dead load output

0.0026

±% of rated output/℃

Temperature effect on sensitivity

0.0015

±% of rated output/℃

Compensated temperature range

-10 to +40

Operating temperature range

-20 to +60

Safe overload

150

% of R.C

Ultimate overload

200

% of R.C

Excitation, recommended

10

Vdc

Excitation, maximum

15

Vdc

Input resistance

720±20

Ohms

Output resistance

700±3

Ohms

Insulation resistance

5000

Mega-Ohms

Material

Alloy steel


Protection class

IP66
