Column load cell mounting kit

Column load cell mounting kit

The ZMZX1 is column type compression mounting kit. The load cell offers fast signalling times and optimal transparency in dosing and weighing processes. With an output signal of 2.0 mV/V, load levels of up to 100 t, accuracy classes up to C3 and high-quality alloy steel, it has a wide range of potential applications.


Features:
Capacity 15t-100t
High precision
Easy and fast installation

Nickel plated alloy steel


Optional features:
Stainless steel construction

  • Product Detail
  • Technical Specifications

The ZMZC1 is column type load cell weight module, capacity ranges from 15T-100T. The load cell kit has high accuracy and stability, used in many applications such as hopper scale, silo scale and tank scale. The product is easy to be installed.

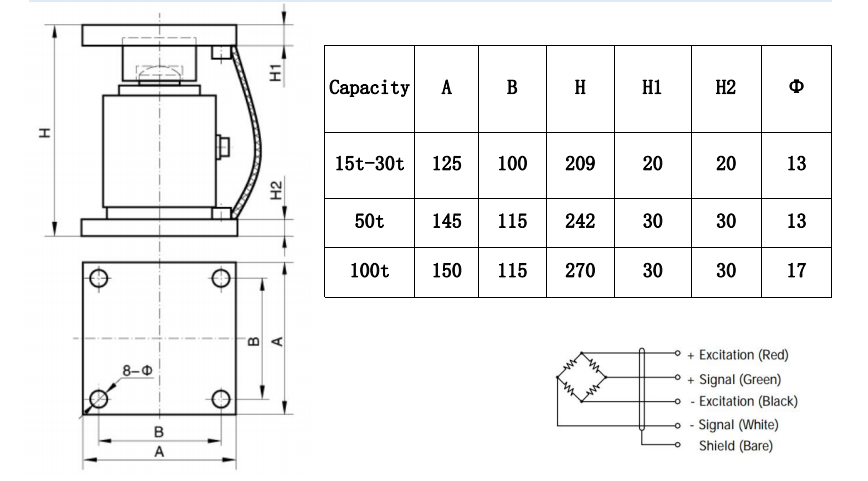

Dimensions in mm


PARAMETER

VALUE

UNIT

Standard capacities (Emax)

15-100

T

Rated output-R.O.

2.0

mV/V

Zero balance

1

±% of rated output

Non linearity

0.1

±% of rated output

Hysteresis

0.1

±% of rated output

Non-repeatability

0.05

±% of rated output

Creep error (30 minutes)

0.03

±% of rated output

Zero return (30 minutes)

0.03

±% of rated output

Temperature effect on min. dead load output

0.0026

±% of rated output/℃

Temperature effect on sensitivity

0.0015

±% of rated output/℃

Compensated temperature range

-10 to +40

Operating temperature range

-20 to +60

Safe overload

150

% of R.C

Ultimate overload

200

% of R.C

Excitation, recommended

10

Vdc

Excitation, maximum

15

Vdc

Input resistance

720±20

Ohms

Output resistance

700±3

Ohms

Insulation resistance

5000

Mega-Ohms

Material

Alloy steel


Protection class

IP67
