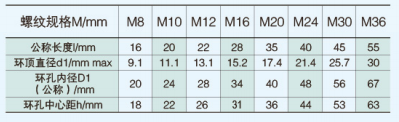

Load cell accessories hoist ring screw

Joint bearing screw for S type tension load cells

The ZMMLB weighing module is designed for spoke type load cells up to 100t capacities. The load cell is with high accuracy and high stability pancake type. Stainless steel construction is optional. Features: Capacity 0.5t-100t Pancake type load cell Easy installation Nickel plated alloy steel Optional features: Stainless steel construction

The ZMX1 is a self-aligning complete with a zinc plated, steel mounting flange. Low profile in design it ensures precise load introduction in applications subject to thermal expansion or vibration. The ZMX1 is widely used in hopper and tank weighing systems, mixing vessel weighing systems. Features: Capacity 0.05t-20t Shear beam load cell Easy inst1

The ZMZX1 is column type compression mounting kit. The load cell offers fast signalling times and optimal transparency in dosing and weighing processes. With an output signal of 2.0 mV/V, load levels of up to 100 t, accuracy classes up to C3 and high-quality alloy steel, it has a wide range of potential applications.  Features: Capacity 15t-101

The ZMX7 is bending beam load cell mounting kit. The load cell offers fast signalling times and optimal transparency in dosing and weighing processes.  Features: Capacity 5kg-500kg High precision Easy and fast installation Nickel plated alloy steel Optional features: Stainless steel construction

ZMMA-YS is mini type force transducer, widely used on UTM and compression&tension force applications.  Features: Capacity 10N,20N,30N,50N,100N Compact size Stainless steel construction Both compression and tension Optional features: 0-5V, 4-20mA output signal

The ZMSGA provides good restraint to possible movement of the automation and in many cases. The load cell has overload preventer which can protect sensor under extrem overloding situtation. The small size gives excellent performance for high capacity loading. The output is rationalized to facilitate multiple-cell application. ZMSGA is contructed of1

The display uses a 24 bit A / D converter, can be connected to various types of sensors and transmitters to achieve the pressure, flow, level, composition analysis and volume measurements, and other physical and mechanical parameters, display, alarm monitoring, data acquisition and recording. Functions: Relay(1,2,3) Amplifer 4-20mA, 0-5V Modbus RTU1
