Compression load cell

Low profile spoke type load cell

Low profile spoke type load cell

The ZMLB is spoke type load cell designed for both tension and compression force measurement. Nickel plated alloy steel can make protection class achieve IP67. The shear beam structure gives load cell high performance of linearity. Zhimin offers ODM&OEM service.



Features:
Capacity 200kg-60t
High accuracy
Low profile

Nickel plated alloy steel IP67


Optional features:
Hermetically sealed available


  • Product Detail
  • Technical Specifications

The ZMLB is spoke type load cell designed for both tension and compression force measurement. Nickel plated alloy steel can make protection class achieve IP67. The load cell is suitable for special measuring equipment. Stainless steel is optional.

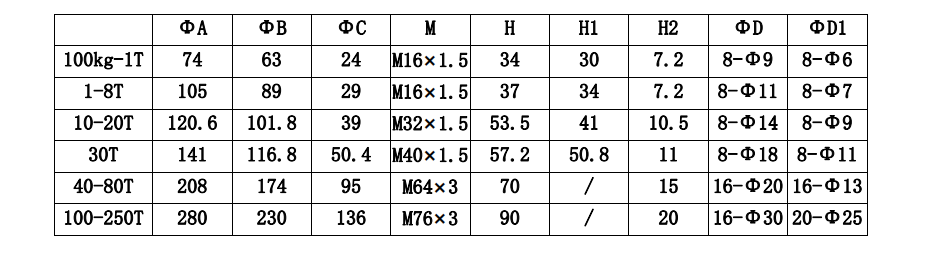

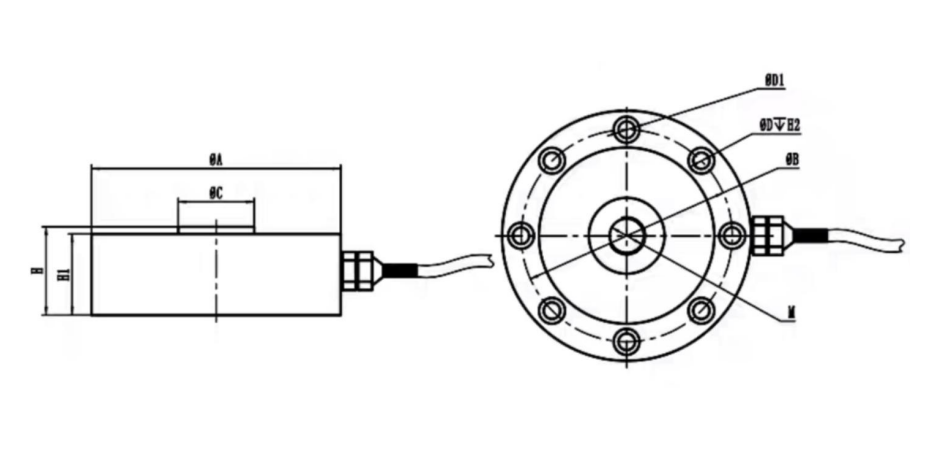

Dimensions in mm

PARAMETER

VALUE

UNIT

Standard capacities (Emax)

0.2-60

T

Rated output-R.O.

2.0

mV/V

Zero balance

1

±% of rated output

Non linearity

0.03

±% of rated output

Hysteresis

0.02

±% of rated output

Non-repeatability

0.02

±% of rated output

Creep error (30 minutes)

0.03

±% of rated output

Zero return (30 minutes)

0.03

±% of rated output

Temperature effect on min. dead load output

0.0026

±% of rated output/℃

Temperature effect on sensitivity

0.0015

±% of rated output/℃

Compensated temperature range

-10 to +40

Operating temperature range

-20 to +60

Safe overload

150

% of R.C

Ultimate overload

200

% of R.C

Excitation, recommended

10

Vdc

Excitation, maximum

15

Vdc

Input resistance

740±10

Ohms

Output resistance

700±3

Ohms

Insulation resistance

5000

Mega-Ohms

Material

Alloy steel


Protection class

IP67
