Button compression load cell sensor

Button compression load cell sensor

The ZMMA is compact size and low profile button load cell, constructed from stainless steel and protected from moisture with an epoxy bonded cover. The load cell is easy to be installed with various automation equipment. The dimension can be customized based on client's requirement.


Features:
Capacity 5kg-5t
Button type load cell
Low profile

Stainless steel


Optional features:
Hermetically sealed available


  • Product Detail

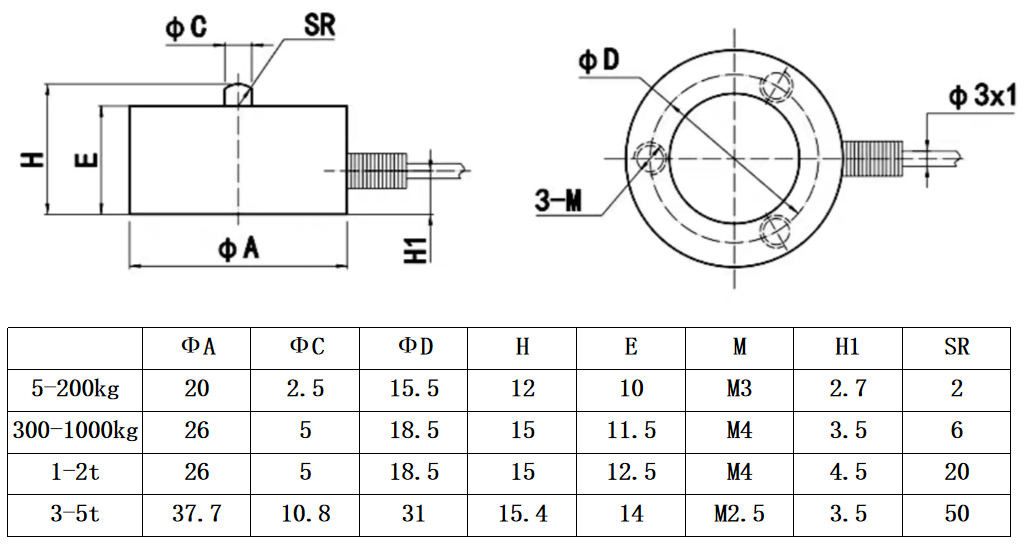

  • Technical Specifications
The ZMMA is constructed from stainless steel and protected from moisture with an epoxy bonded cover. ZMMA is configured for compression force measurement. Full-bridge, bonded foil strain gauge technology provides excellent long-term stability and ensures high performance even in applications requiring in excess of 1 million load cycles.


PARAMETER

VALUE

UNIT

Standard capacities (Emax)

5-5000

KG

Rated output-R.O.

1.0-2.0

mV/V

Zero balance

1

±% of rated output

Non linearity

0.1

±% of rated output

Hysteresis

0.1

±% of rated output

Non-repeatability

0.05

±% of rated output

Creep error (30 minutes)

0.05

±% of rated output

Zero return (30 minutes)

0.05

±% of rated output

Temperature effect on min. dead load output

0.0026

±% of rated output/℃

Temperature effect on sensitivity

0.0015

±% of rated output/℃

Compensated temperature range

-10 to +40

Operating temperature range

-20 to +60

Safe overload

150

% of R.C

Ultimate overload

200

% of R.C

Excitation, recommended

10

Vdc

Excitation, maximum

15

Vdc

Input resistance

710±10

Ohms

Output resistance

700±3

Ohms

Insulation resistance

5000

Mega-Ohms

Material

Stainless steel


Protection class

IP66
