Beehive scale SMS single point load cell

Beehive scale SMS single point load cell

The ZMPC is a series of aluminium single-point load cells intended for a wide range of industrial applications. One of the important applications is beehive scale. The ZMPC is with very high accuracy and stability. The very low corner error makes load cell extremely reliable.


Features:

Capacity 60kg-300kg
Weight scale load cell
Easy to install
Alloy aluminum construction
High accuracy
High stability

  • Product Detail
  • Technical Specifications
The ZMPC is a series of aluminium single-point load cells intended for a wide range of industrial applications. Due to the compact design, the ZMPC can be integrated into low-capacity weighing machinery, medical devices and general machinery for process automation and control.  It features full-bridge, bonded-foil strain gauge technology, which offers excellent long-term stability.

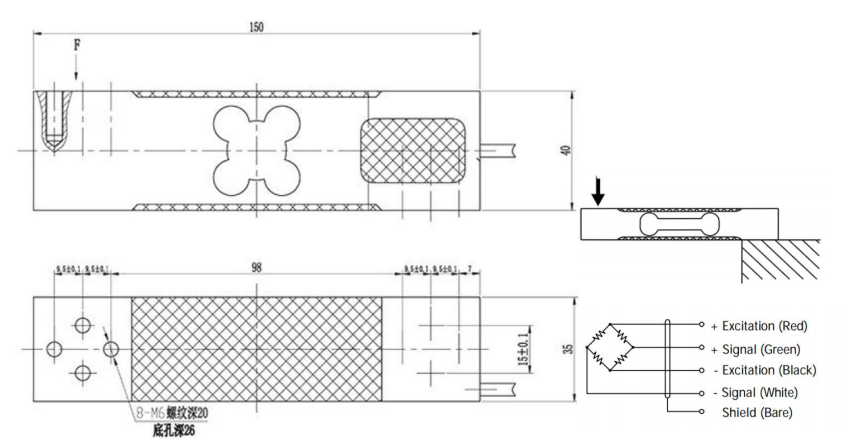

Dimensions in mm


PARAMETER

VALUE

UNIT

Standard capacities (Emax)

60-300

KG

Rated output-R.O.

2.0

mV/V

Zero balance

1

±% of rated output

Non linearity

0.03

±% of rated output

Hysteresis

0.03

±% of rated output

Non-repeatability

0.02

±% of rated output

Creep error (30 minutes)

0.03

±% of rated output

Zero return (30 minutes)

0.03

±% of rated output

Temperature effect on min. dead load output

0.0026

±% of rated output/℃

Temperature effect on sensitivity

0.0015

±% of rated output/℃

Compensated temperature range

-10 to +40

Operating temperature range

-20 to +60

Safe overload

150

% of R.C

Ultimate overload

200

% of R.C

Excitation, recommended

10

Vdc

Excitation, maximum

15

Vdc

Input resistance

370±20

Ohms

Output resistance

350±3

Ohms

Insulation resistance

5000

Mega-Ohms

Material

Alloy aluminum


Protection class

IP66
