Aluminum single point load cell

Aluminum single point load cell

The ZMPC is a series of aluminium single-point load cells intended for a wide range of industrial applications. High calibration accuracy which provides ideal conditions for the parallel arrangement of load cells.



Features:
Capacity 60kg-300kg
Weight scale load cell
Easy to install
Alloy aluminum construction
High accuracy
High stability


  • Product Detail
  • Technical Specifications
The ZMPC is a series of aluminium single-point load cells intended for a wide range of industrial applications. Due to the compact design, the ZMPC can be integrated into low-capacity weighing machinery, medical devices and general machinery for process automation and control.  It features full-bridge, bonded-foil strain gauge technology, which offers excellent long-term stability.

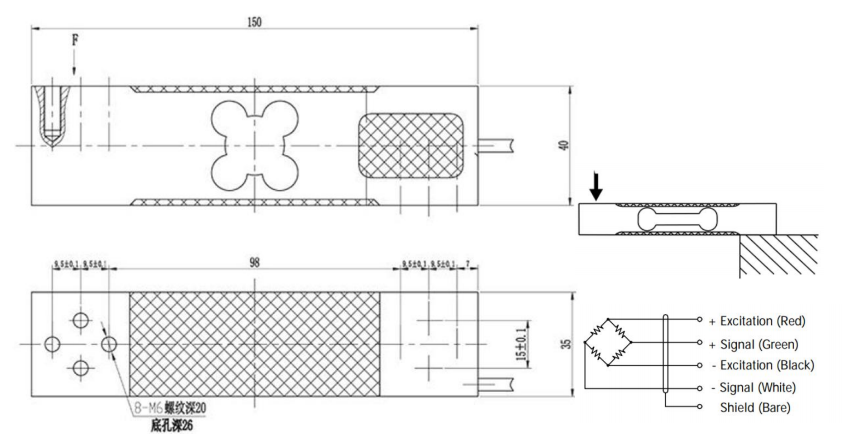

Dimensions in mm


PARAMETER

VALUE

UNIT

Standard capacities (Emax)

60-300

KG

Rated output-R.O.

2.0

mV/V

Zero balance

1

±% of rated output

Non linearity

0.03

±% of rated output

Hysteresis

0.03

±% of rated output

Non-repeatability

0.02

±% of rated output

Creep error (30 minutes)

0.03

±% of rated output

Zero return (30 minutes)

0.03

±% of rated output

Temperature effect on min. dead load output

0.0026

±% of rated output/℃

Temperature effect on sensitivity

0.0015

±% of rated output/℃

Compensated temperature range

-10 to +40

Operating temperature range

-20 to +60

Safe overload

150

% of R.C

Ultimate overload

200

% of R.C

Excitation, recommended

10

Vdc

Excitation, maximum

15

Vdc

Input resistance

370±20

Ohms

Output resistance

350±3

Ohms

Insulation resistance

5000

Mega-Ohms

Material

Alloy aluminum


Protection class

IP66
