Platform scale parallel beam load cell 30kg

Platform scale parallel beam load cell 30kg

The ZMPB is a compact, low capacity aluminium single point load cell ideal for a wide range of weighing applications. The ZMPB load cells are produced entirely from stainless steel. They are connected electrically by a high-quality, 4-wire screened PVC cable.


Features:
Capacity 3kg-120kg
Weight scale load cell
Easy to install
Alloy aluminum construction
High accuracy
High stability


  • Product Detail
  • Technical Specifications
The ZMPB is a compact, low capacity aluminium single point load cell ideal for a wide range of weighing applications. Environmentally sealed with potting compound to ensure durability. The industry standard size and mounting hole configuration makes the ZMPB ideal for new equipment manufacturer or as a replacement fitting.


Advatanges:

1. Very low corner load error

2. Good cost-benefit ratio

3. Available with 0.05 % accuracy and in a legal-for-trade version

4. Optimized by exact calibration for parallel circuits

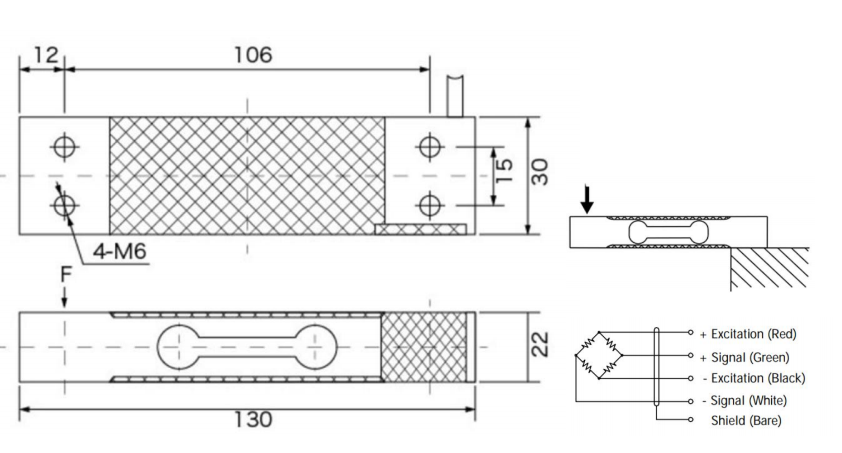

Dimensions in mm


PARAMETER

VALUE

UNIT

Standard capacities (Emax)

3-120

KG

Rated output-R.O.

2.0

mV/V

Zero balance

1

±% of rated output

Non linearity

0.03

±% of rated output

Hysteresis

0.03

±% of rated output

Non-repeatability

0.02

±% of rated output

Creep error (30 minutes)

0.03

±% of rated output

Zero return (30 minutes)

0.03

±% of rated output

Temperature effect on min. dead load output

0.0026

±% of rated output/℃

Temperature effect on sensitivity

0.0015

±% of rated output/℃

Compensated temperature range

-10 to +40

Operating temperature range

-20 to +60

Safe overload

150

% of R.C

Ultimate overload

200

% of R.C

Excitation, recommended

10

Vdc

Excitation, maximum

15

Vdc

Input resistance

370±20

Ohms

Output resistance

350±3

Ohms

Insulation resistance

5000

Mega-Ohms

Material

Alloy aluminum


Protection class

IP66
