Miniature single point load cell for platform scale 3kg

Miniature single point load cell for platform scale 3kg

The ZMPA is a series of low capacity, aluminium single-point load cells intended for a wide range of industrial applications. The ZMPA convert proportionally the mechanical input variable force into the electrical variable voltage. The load cells are ideal for use in platform scalem weighfeeders and bin weighers. The compact design facilitates planning into any given construction.



Features:
Capacity 0.2kg-3kg
Micro size
Easy to install
Alloy aluminum construction
High accuracy
High stability


  • Product Detail
  • Technical Specifications

The ZMPA is a series of low capacity, aluminium single-point load cells intended for a wide range of industrial applications. Due to the compact design, the ZMPA can be integrated into low-capacity weighing machinery, medical devices and general machinery for process automation and control. The load cell has a range of capacities It features full-bridge, bonded-foil strain gauge technology, which offers excellent long-term stability.

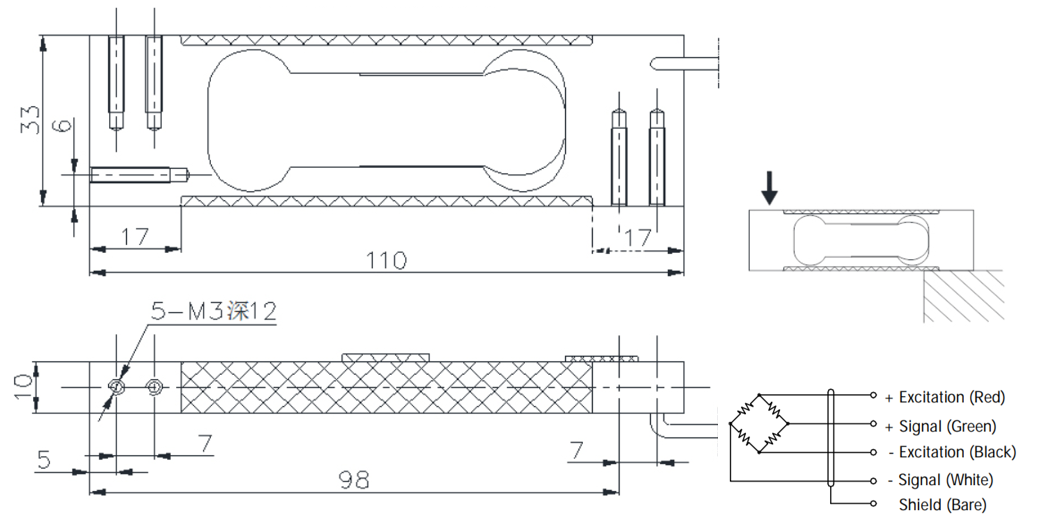

Dimensions in mm



PARAMETER

VALUE

UNIT

Standard capacities (Emax)

0.2-3

KG

Rated output-R.O.

2.0

mV/V

Zero balance

1

±% of rated output

Non linearity

0.03

±% of rated output

Hysteresis

0.03

±% of rated output

Non-repeatability

0.02

±% of rated output

Creep error (30 minutes)

0.03

±% of rated output

Zero return (30 minutes)

0.03

±% of rated output

Temperature effect on min. dead load output

0.0026

±% of rated output/℃

Temperature effect on sensitivity

0.0015

±% of rated output/℃

Compensated temperature range

-10 to +40

Operating temperature range

-20 to +60

Safe overload

150

% of R.C

Ultimate overload

200

% of R.C

Excitation, recommended

10

Vdc

Excitation, maximum

15

Vdc

Input resistance

370±20

Ohms

Output resistance

350±3

Ohms

Insulation resistance

5000

Mega-Ohms

Material

Alloy aluminum


Protection class

IP66
