Platform scale parallel beam load cell 800kg

Platform scale parallel beam load cell 800kg

The ZMPE single point load cell is a medium capacity weight sensor ideal for bench scales, platform scales and medical scales. The ZMPE is high reproducibility of the measuring signals and extremely low interference by transverse loads of the measured values.



Features:
Capacity 60kg-1200kg
Weight scale load cell
Easy to install
Alloy aluminum construction
High accuracy
High stability


  • Product Detail
  • Technical Specifications
The ZMPE single point load cell is a medium capacity weight sensor ideal for bench scales, platform scales and medical scales. Constructed from aluminium and environmentally sealed with potting compound to ensure durability. The PC60 is available in a wide range of capacities from 60kg through to 1200kg

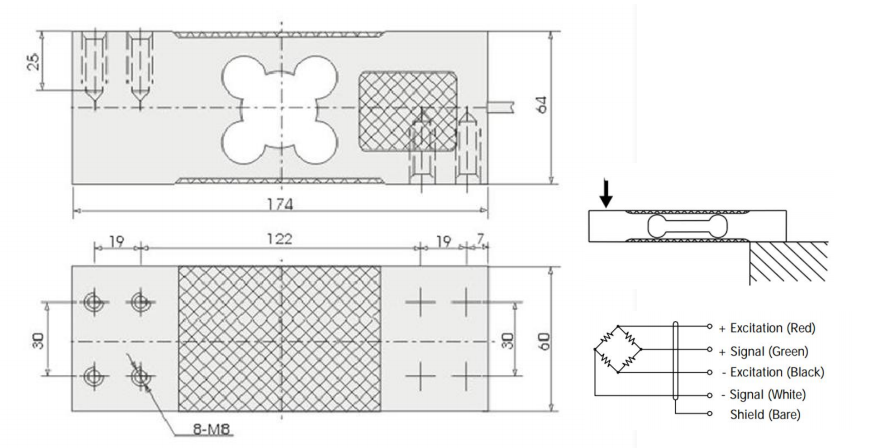

Dimensions in mm


PARAMETER

VALUE

UNIT

Standard capacities (Emax)

60-1200

KG

Rated output-R.O.

2.0

mV/V

Zero balance

1

±% of rated output

Non linearity

0.03

±% of rated output

Hysteresis

0.03

±% of rated output

Non-repeatability

0.02

±% of rated output

Creep error (30 minutes)

0.03

±% of rated output

Zero return (30 minutes)

0.03

±% of rated output

Temperature effect on min. dead load output

0.0026

±% of rated output/℃

Temperature effect on sensitivity

0.0015

±% of rated output/℃

Compensated temperature range

-10 to +40

Operating temperature range

-20 to +60

Safe overload

150

% of R.C

Ultimate overload

200

% of R.C

Excitation, recommended

10

Vdc

Excitation, maximum

15

Vdc

Input resistance

370±20

Ohms

Output resistance

350±3

Ohms

Insulation resistance

5000

Mega-Ohms

Material

Alloy aluminum


Protection class

IP66
