Single point load cell 50-2000kg

Single point load cell 50-2000kg

The ZMPF is alloy steel construction and adhesive sealed single point type load cell with IP66 protection. It is suitable for floor scales, counting scales, packing machines and similar electronic weighing devices or testing machines.



Features:
Capacity 50kg-2000kg
High accuracy
High stability

Nickel plated alloy steel


Optional features:
Stainless steel construction


  • Product Detail
  • Technical Specifications
The ZMPF is a single point load cell made from alloy steel. The load cell is suitable for bench scales, platform scales and weighing machines with accuracy C3. The load cell gives extremely accurate reproducible results, over a long term even in harsh industrial environments. Each individual load cell ZMPF is corner adjusted and optimised for out of center load sensitivity. This ensures that there will be no measurement error when the load is placed off centre, eg in a corner of a platform.

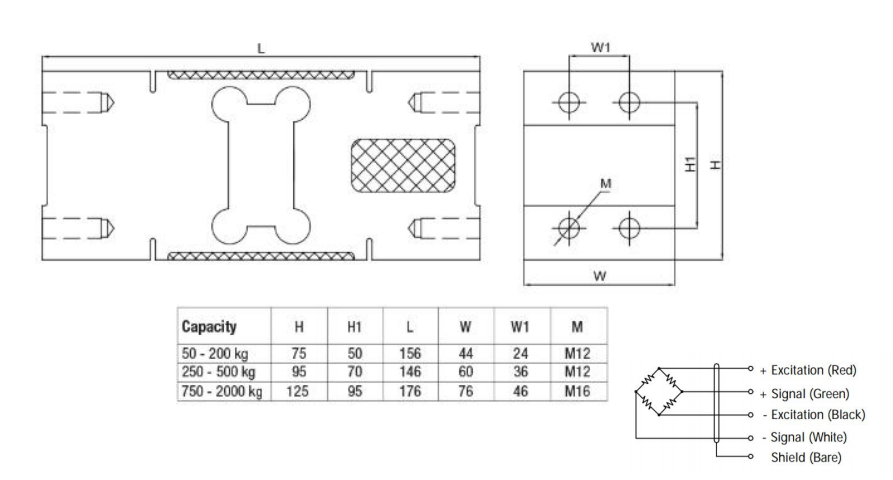

Dimensions in mm


PARAMETER

VALUE

UNIT

Standard capacities (Emax)

50-2000

KG

Rated output-R.O.

2.0

mV/V

Zero balance

1

±% of rated output

Non linearity

0.03

±% of rated output

Hysteresis

0.03

±% of rated output

Non-repeatability

0.02

±% of rated output

Creep error (30 minutes)

0.03

±% of rated output

Zero return (30 minutes)

0.03

±% of rated output

Temperature effect on min. dead load output

0.0026

±% of rated output/℃

Temperature effect on sensitivity

0.0015

±% of rated output/℃

Compensated temperature range

-10 to +40

Operating temperature range

-20 to +60

Safe overload

150

% of R.C

Ultimate overload

200

% of R.C

Excitation, recommended

10

Vdc

Excitation, maximum

15

Vdc

Input resistance

360±10

Ohms

Output resistance

350±3

Ohms

Insulation resistance

5000

Mega-Ohms

Material

Alloy steel


Protection class

IP66
