Double ended beam load cell
Home

Load Cells

Double ended beam load cell

Weighbridge compression truck scale load cell

Weighbridge compression truck scale load cell

Weighbridge load cells also known as truck scales are designed for truck and rail scales. The ZMHBQ is common product widely used around the world.  The ZMHBQ is very cost-effective with C3 class. In most of situations, they are used at 4,6 or 8 numbers together, so their sensitivity must be exact same.



Features:
Capacity 10t-50t
High accuracy
Cost-effective

Nickel plated alloy steel


Optional features:
Hermetically sealed available


  • Product Detail
  • Technical Specifications

Weighbridge load cells also known as truck scales are designed for truck and rail scales. The ZMHBQ is common product widely used around the world.  The ZMHBQ is very cost-effective with C3 class. In most of situations, they are used at 4,6 or 8 numbers together, so their sensitivity must be exact same.

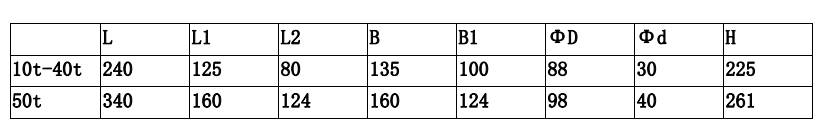

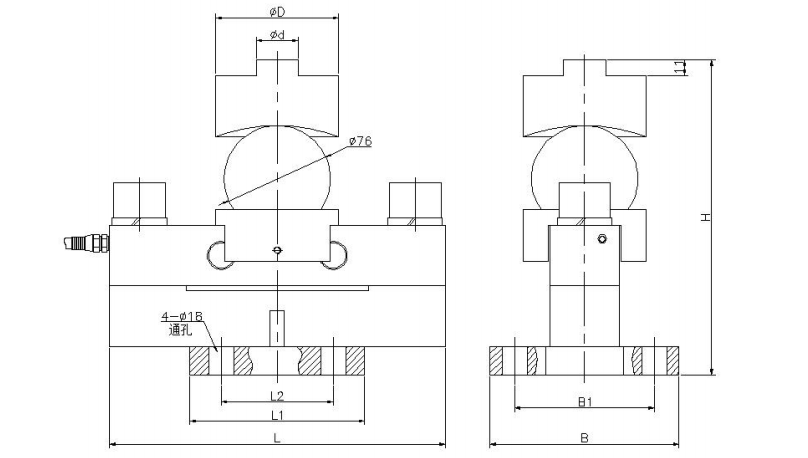

Dimensions in mm



PARAMETER

VALUE

UNIT

Standard capacities (Emax)

10-50

T

Rated output-R.O.

2.0

mV/V

Zero balance

1

±% of rated output

Non linearity

0.03

±% of rated output

Hysteresis

0.02

±% of rated output

Non-repeatability

0.02

±% of rated output

Creep error (30 minutes)

0.03

±% of rated output

Zero return (30 minutes)

0.03

±% of rated output

Temperature effect on min. dead load output

0.0026

±% of rated output/℃

Temperature effect on sensitivity

0.0015

±% of rated output/℃

Compensated temperature range

-10 to +40

Operating temperature range

-20 to +60

Safe overload

150

% of R.C

Ultimate overload

200

% of R.C

Excitation, recommended

10

Vdc

Excitation, maximum

15

Vdc

Input resistance

720±10

Ohms

Output resistance

700±3

Ohms

Insulation resistance

5000

Mega-Ohms

Material

Alloy steel


Protection class

IP67
