Double ended beam load cell
Home

Load Cells

Double ended beam load cell

Elevator double ended shear beam load cell

Elevator double ended shear beam load cell

The ZMQS is double ended shear beam load cell, capacity from 1t up to 30t.  The load cell has high accuracy and high stability, widely used in elevator industry.


Features:

Capacity 1t-30t
High accuracy
High stability

Nickel plated alloy steel


Optional features:
Stainless steel construction


  • Product Detail
  • Technical Specifications
The ZMQS is double ended shear beam load cell, capacity from 1t up to 30t. The load cell is widely used in evelator.We provide optional amplifer which converts analog sigal into 4-20mA, 0-5V or 0-10V.

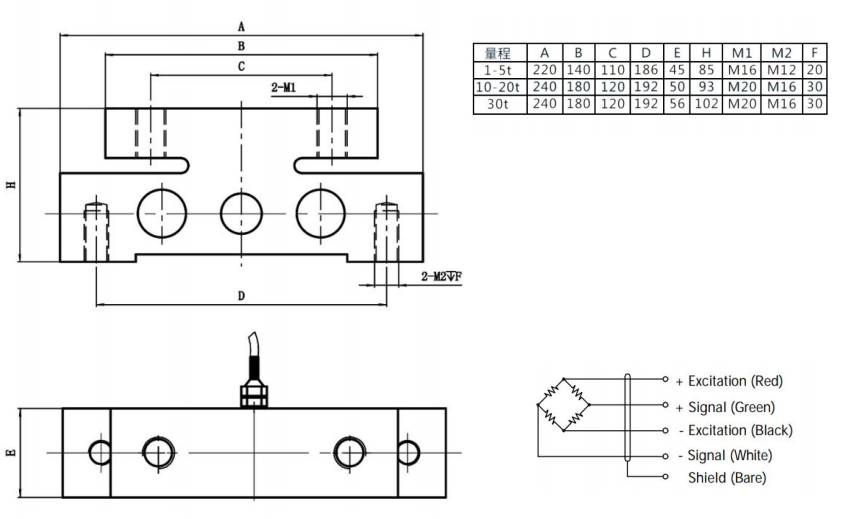

Dimensions in mm


PARAMETER

VALUE

UNIT

Standard capacities (Emax)

1-30

T

Rated output-R.O.

2.0

mV/V

Zero balance

1

±% of rated output

Non linearity

0.1

±% of rated output

Hysteresis

0.1

±% of rated output

Non-repeatability

0.05

±% of rated output

Creep error (30 minutes)

0.03

±% of rated output

Zero return (30 minutes)

0.03

±% of rated output

Temperature effect on min. dead load output

0.0026

±% of rated output/℃

Temperature effect on sensitivity

0.0015

±% of rated output/℃

Compensated temperature range

-10 to +40

Operating temperature range

-20 to +60

Safe overload

150

% of R.C

Ultimate overload

200

% of R.C

Excitation, recommended

10

Vdc

Excitation, maximum

15

Vdc

Input resistance

360±10

Ohms

Output resistance

350±3

Ohms

Insulation resistance

5000

Mega-Ohms

Material

Alloy steel


Protection class

IP66
