Double flange static torque sensor

Double flange static torque sensor

The ZMNJF2 is a non-rotating type torque transducer that converts a torsional mechanical input into an electrical output signal. The ZMNJF2 can be used in both clockwise and counterclockwise direction ranging from 1000Nm up to 5000Nm. The sensor is used in static and non-rotating torsion measure applications.



Features:
Capacity 1000Nm-5000Nm
Static torsion measure
Rational outputs

Nickel plated alloy steel


Optional features:
Hermetically sealed available


  • Product Detail
  • Technical Specifications

The ZMNJF2 is static torque transducer with double flanges structure. The transducer can be used in both clockwise and counterclockwise direction ranging from 1000Nm up to 5000Nm.


If the dimension is not suitable for you, Zhimin can provide customized solutions.

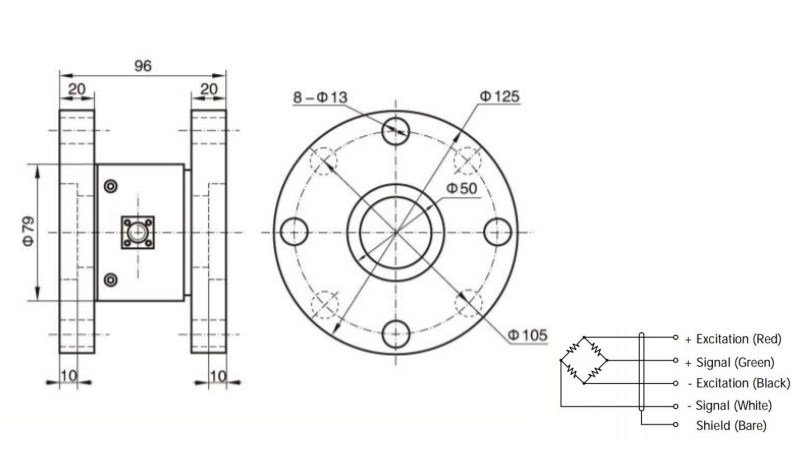

Dimensions in mm


PARAMETER

VALUE

UNIT

Standard capacities (Emax)

1000-5000

Nm

Rated output-R.O.

1.0-2.0

mV/V

Zero balance

1

±% of rated output

Non linearity

0.2

±% of rated output

Hysteresis

0.2

±% of rated output

Non-repeatability

0.1

±% of rated output

Creep error (30 minutes)

0.03

±% of rated output

Zero return (30 minutes)

0.03

±% of rated output

Temperature effect on min. dead load output

0.0026

±% of rated output/℃

Temperature effect on sensitivity

0.0015

±% of rated output/℃

Compensated temperature range

-10 to +40

Operating temperature range

-20 to +60

Safe overload

150

% of R.C

Ultimate overload

200

% of R.C

Excitation, recommended

10

Vdc

Excitation, maximum

15

Vdc

Input resistance

710±10

Ohms

Output resistance

700±3

Ohms

Insulation resistance

5000

Mega-Ohms

Material

Alloy steel


Protection class

IP66
