load cell analog output transmitter

load cell analog output transmitter

The ZMBSQ is load cell transmitter converting mv output to other  standard analog or digital  output. Users can choose 4-20mA, 0-5V, 0-10V and Modbus RTU RS485. The transmitter is compact and delicate.


Features:
Excitation 12V/24V
Output 4-20mA, 0-3.3V, 0-5V, 0-10V
Accuracy 0.2%F.S.
Waterproof cover
Easy connection
Potentionmeter adjustment


  • Product Detail
  • Technical Specifications
The external transmitter adopts aluminum alloy shell to accurately amplify the mv signal of the load cell, and the internal line is neat. Convert mechanical quantity into standard current and voltage output, 4-20mA, 0-5V, 0-10V. The transmitter has zero and gain adjustment functions.

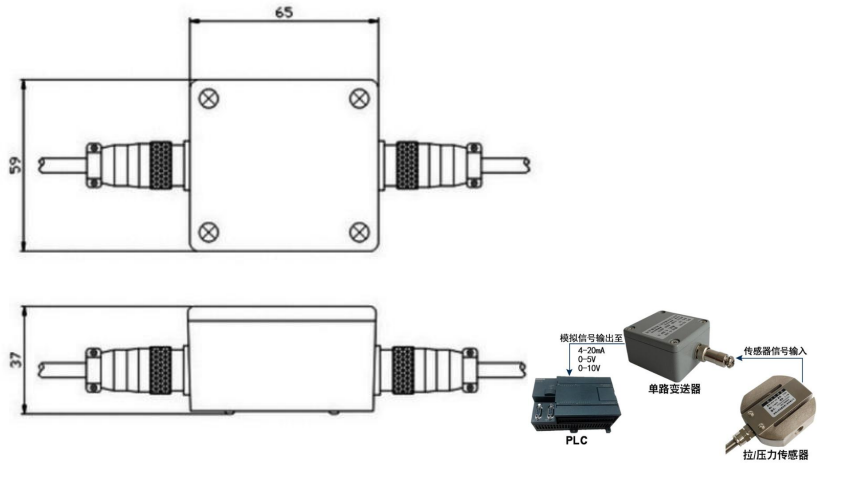

Dimensions in mm


Excitation 12 or 24 Vdc
Output 4-20mA, 0-3.3V, 0-5V, 0-10V, RS485 /
Accuracy 0.1  %F.S.
Operating temperature range -20 to +60
