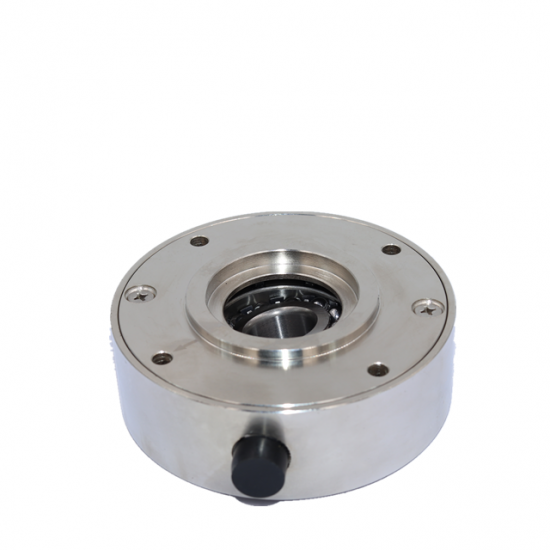

0≤θ≤150°

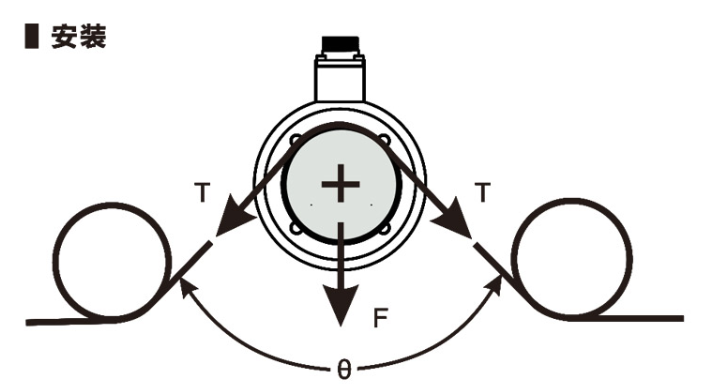

T=Material tension F=force on web tension load cell

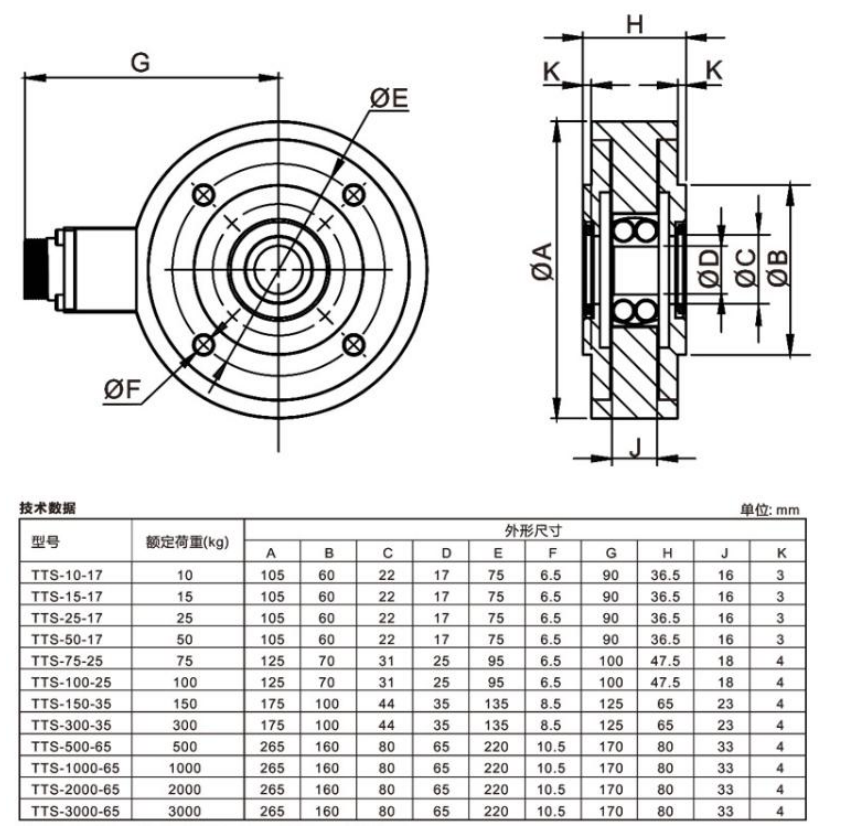

Dimensions in mm
Nickel plated alloy steel
0≤θ≤150°
T=Material tension F=force on web tension load cell
Dimensions in mm
|
PARAMETER |
VALUE |
UNIT |
|
Standard capacities (Emax) |
100-30000 |
N |
|
Rated output-R.O. |
1.0 |
mV/V |
|
Zero balance |
1 |
±% of rated output |
|
Non linearity |
0.3 |
±% of rated output |
|
Hysteresis |
0.2 |
±% of rated output |
|
Non-repeatability |
0.1 |
±% of rated output |
|
Creep error (30 minutes) |
0.03 |
±% of rated output |
|
Zero return (30 minutes) |
0.03 |
±% of rated output |
|
Temperature effect on min. dead load output |
0.0026 |
±% of rated output/℃ |
|
Temperature effect on sensitivity |
0.0015 |
±% of rated output/℃ |
|
Compensated temperature range |
-10 to +40 |
℃ |
|
Operating temperature range |
-20 to +60 |
℃ |
|
Safe overload |
150 |
% of R.C |
|
Ultimate overload |
200 |
% of R.C |
|
Excitation, recommended |
10 |
Vdc |
|
Excitation, maximum |
15 |
Vdc |
|
Input resistance |
380±10 |
Ohms |
|
Output resistance |
350±3 |
Ohms |
|
Insulation resistance |
5000 |
Mega-Ohms |
|
Material |
Alloy steel |
|
|
Protection class |
IP66 |
|
The ZMBH is tension load cell alloy steel IP67 protected load cell. The capacity ranges from 2t-70t. It is widely used in crane scales. Features: Capacity 2t-70t High accuracy Easy installation Nickel plated alloy steel Optional features: Stainless steel construction
The ZMRC is rope clamp tension load cell measuring from 1t-20t. The load cell is easy to be installed with wire rope, which provides a simple way to measure weight in crane, hoist industry. The black printing is optional. Features: Capacity 1t-20t Rope clamp tesnion measure Easy to install Nickel plated alloy steel Optional features: Black pr1
The ZMME-L is large capacity in line threaded load cell, used for both tension and compression. The load cell is constructed with nickel plated alloy steel, with good stability. The rated capacity ranges from 100KN-6000KN, widely used in crane and weighing industry. Features: Capacity 100KN-6000KN Two sides thread mounting Nickel plated1
ZMSY is tension load cell which is contructed of alloy steel and is potted to IP67 providing excellent protection against moisture and humidity. It perfectly fits for use in industrial applications such as high capacity crane scales and testing equipment. Own to the proven and high quality strain gauge technology and full developed amplifiers provi1
The ZMLCS load cells measure both tension & compression load force. Applications include performance testers for automotive industry. Features: Capacity 500kgf-300tf Compression and tension In-line thread tyoe Alloy steel construction Optional features Customizable dimensions
The ZMXE is a high accuracy, low profile bending beam available in a wide range of capacities. The ZMXE is widely used in platform weighing machines, pallet truck scales, tank and vessel weighing systems, conveyor scales and patient weighing systems such as intensive care beds and wheelchair scales. Features: Capacity 50kg-10t High accuracy Cost-ef1
The ZMXB is a high accuracy, low profile single ended shear beam load cell available in a wide range of capacities. With IP67 protected metric threaded and blind hole types, they are perfect choice for applications such as floor scales, conveyor, hopper and low capacity vessel weighing systems. Features: Capacity 50KG-5T High accuracy High stabilit1
The ZMWMC is constructed from stainless steel and protected from moisture with an epoxy bonded cover. ZMWMC is configured for both of compression and tension force measurement. Full-bridge, bonded foil strain gauge technology provides excellent long-term stability and ensures high performance even in applications requiring in excess of 1 million lo1
