Pressure sensor

Pressure sensor

The ZMYL series of pressure sensors are cost-effective products designed for high volume, low cost industrial and civil pressure measurement field.


Features:
Range: -1~2000Bar optional
Output: 4-20mA/0-5V/1-5V/0-10V/0.5-4.5V
Fitting: G 1/4; G 1/8; 1/4 NPT; 1/8NPT;
M20*1.5; M12*1.5
Type: Gage/Absoluted/Sealed

  • Product Detail
  • Technical Specifications

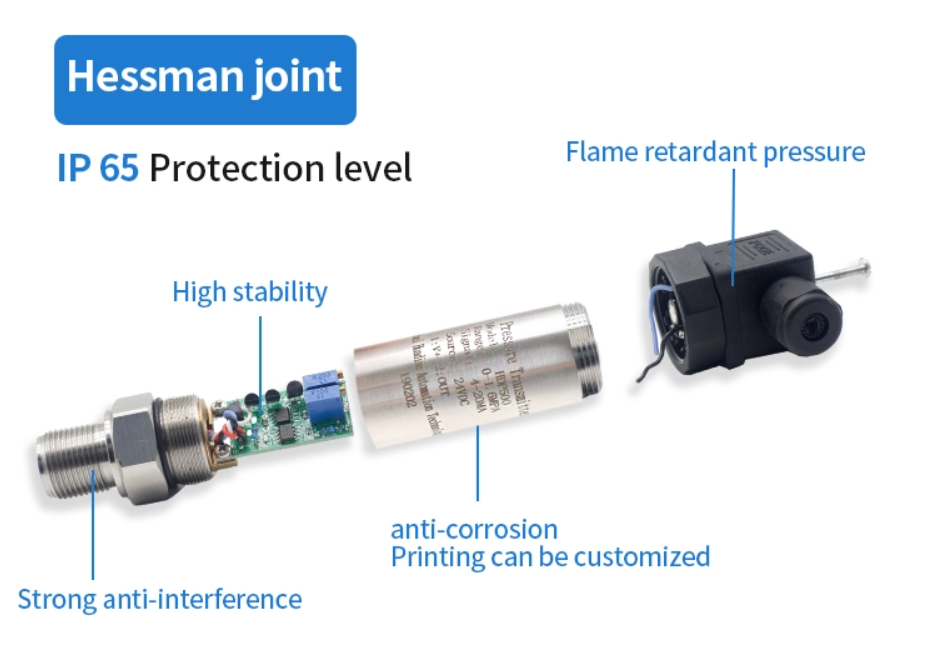

The pressure sensor adopts imported pressure sensitive components, digital compensation amplifier circuit with microprocessor, laser welding and packaging process of stainless steel housing, built-in anti-radio frequency and anti-electromagnetic interference circuit, with high precision, high reliability, small size, vibration resistance, anti-interference, strong ability feature and so on. This series of products offers a variety of mounting thread and electrical connection for customers to choose.

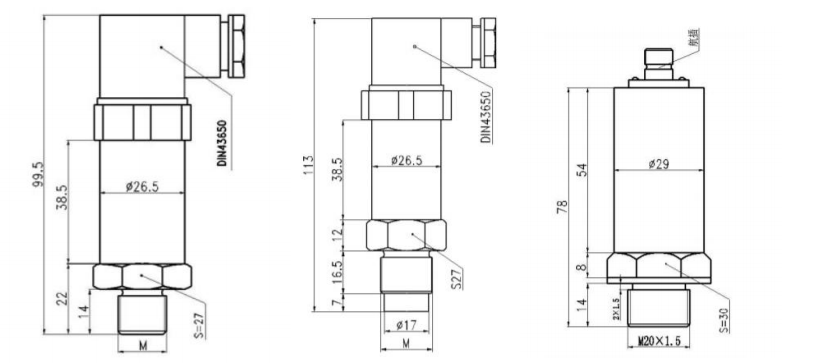

Dimensions in mm

Applicable media

Liquid/Gas/Steam

Pressure range

-1-2000bar

Pressure measurement

Gauge pressure, absolute pressure, negative pressure, sealing pressure

Accuracy

0.1%F.S/0.25%F.S/0.5%F.S

Stability

±0.25%F.S/year

Zero Balance

1%F.S

Max overload

250%F.S

Output signal

4-20mA/0-5V/0-10V/RS485

Housing material

304 stainless steel

Mechanical connection

G 1/4; G 1/8; 1/4 NPT; 1/8NPT; M20*1.5; M12*1.5


Power supply

24V DC

Ambient temperature

-40~85ºC

Compensation temperature

-10~70ºC

Working temperature

-10~70ºC
