Dynamic rotating torque sensor

Dynamic rotating torque sensor

ZMDN is a high-precision rotarting torque sensor. The max rotating speed that the sensor can accept is 3000rpm. The output signal of ZMDN is from 1.0-1.5mv/v. Analog transmitter 4-20mA, 0-5V, 0-10V is optional.



Features:
Capacity 0.1Nm-500Nm
Carbon brush touchable torque sensor
Max 3000rpm

Stainless steel body


Optional features:
4-20mA, 0-5V, 0-10V output


  • Product Detail
  • Technical Specifications
ZMDN is a high-precision rotary torque sensor. The interior consists of a strain gauge and a contact slip ring. Positive and negative torque signals are output, and the two ends are key links. The maximum speed can reach 3000rpm.

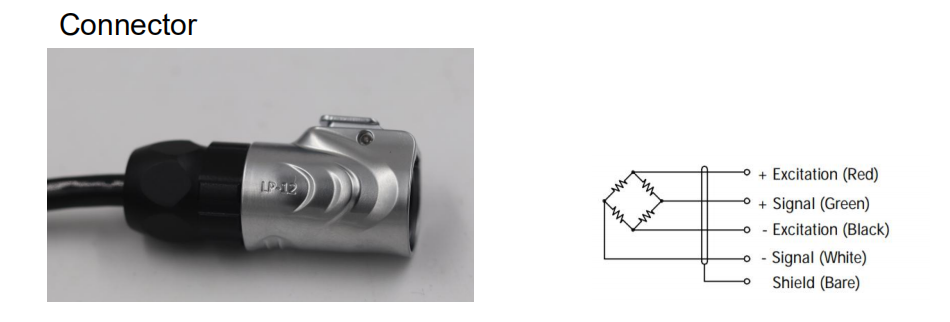

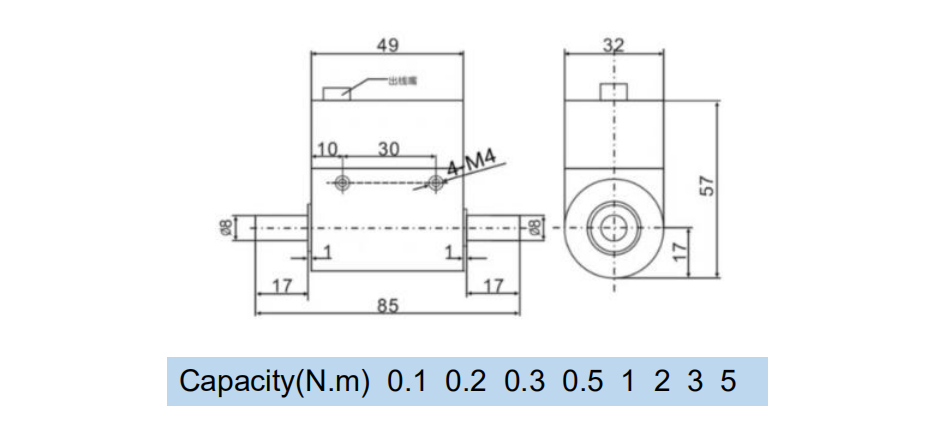

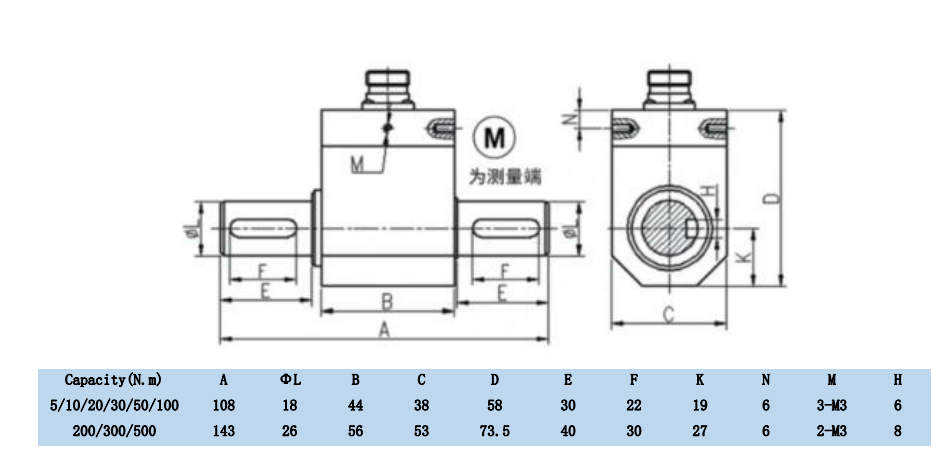

Dimensions in mm





PARAMETER

VALUE

UNIT

Standard capacities (Emax)

0.1-500

N.m

Rated output-R.O.

1.0-1.5

mV/V

Zero balance

1

±% of rated output

Non linearity

0.1

±% of rated output

Hysteresis

0.1

±% of rated output

Non-repeatability

0.05

±% of rated output

Creep error (30 minutes)

0.03

±% of rated output

Zero return (30 minutes)

0.03

±% of rated output

Temperature effect on min. dead load output

0.0026

±% of rated output/℃

Temperature effect on sensitivity

0.0015

±% of rated output/℃

Compensated temperature range

-10 to +40

Operating temperature range

-20 to +60

Safe overload

150

% of R.C

Ultimate overload

200

% of R.C

Excitation, recommended

10

Vdc

Excitation, maximum

15

Vdc

Input resistance

380±10

Ohms

Output resistance

350±3

Ohms

Insulation resistance

5000

Mega-Ohms

Material

Stainless steel


Protection class

IP66
