Tension and compression load cell

Tension and compression load cell

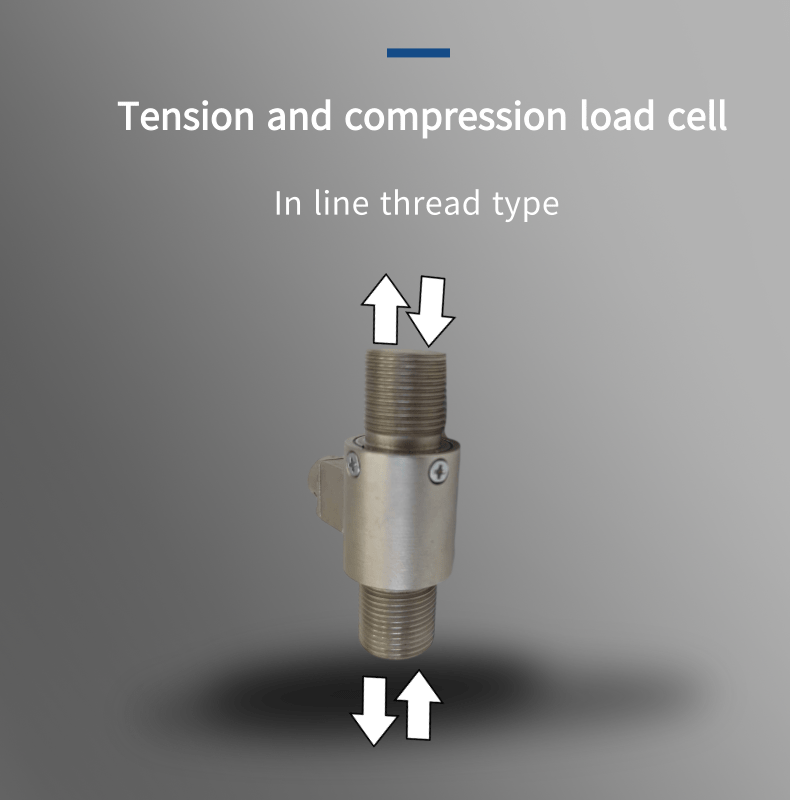

The ZMLCS load cells measure both tension & compression load force. Applications include performance testers for automotive industry.

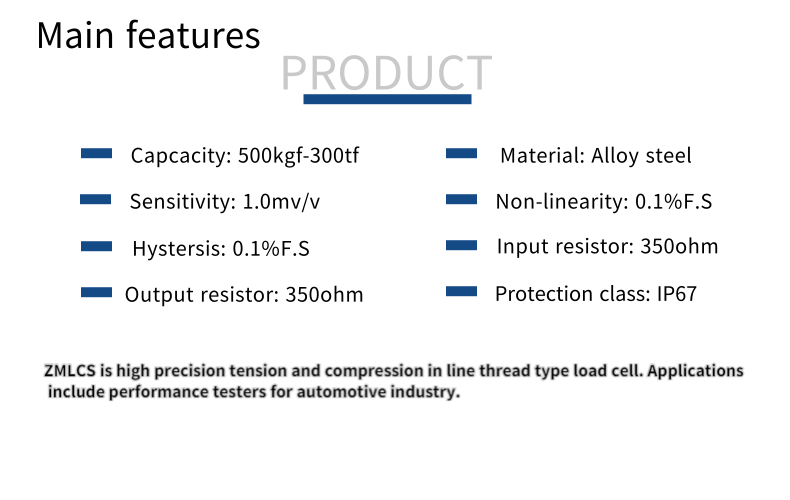

Features:

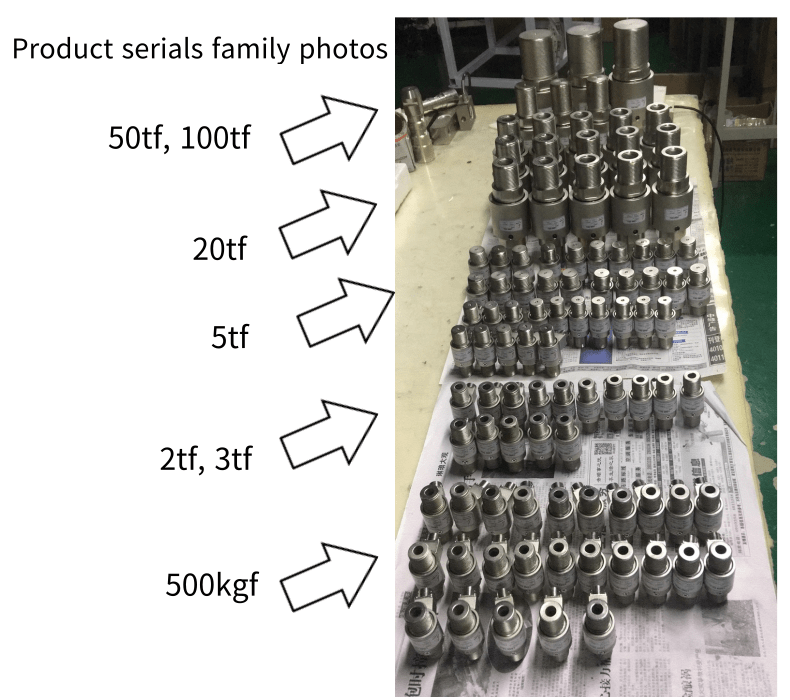

Capacity 500kgf-300tf
Compression and tension
In-line thread tyoe

Alloy steel construction


Optional features
Customizable dimensions


  • Product Detail
  • Technical Specifications

PARAMETER

VALUE

UNIT

Standard capacities (Emax)

0.5 - 300

tf

Rated output-R.O.

1.0

mV/V

Zero balance

1

±% of rated output

Non linearity

0.1

±% of rated output

Hysteresis

0.1

±% of rated output

Non-repeatability

0.05

±% of rated output

Creep error (30 minutes)

0.05

±% of rated output

Zero return (30 minutes)

0.05

±% of rated output

Temperature effect on min. dead load output

0.0026

±% of rated output/℃

Temperature effect on sensitivity

0.0015

±% of rated output/℃

Compensated temperature range

-10 to +40

Operating temperature range

-20 to +60

Safe overload

150

% of R.C

Ultimate overload

200

% of R.C

Excitation, recommended

10

Vdc

Excitation, maximum

15

Vdc

Input resistance

370±20

Ohms

Output resistance

350±3

Ohms

Insulation resistance

5000

Mega-Ohms

Material

Alloy steel


Protection class

IP67
