Rope clamp tension load cell

Rope clamp tension load cell

The ZMRC is rope clamp tension load cell measuring from 1t-20t. The load cell is easy to be installed with wire rope, which provides a simple way to measure weight in crane, hoist industry. The black printing is optional.


Features:
Capacity 1t-20t
Rope clamp tesnion measure
Easy to install

Nickel plated alloy steel


Optional features:
Black print


  • Product Detail
  • Technical Specifications
The ZMRC can be used to prevent slack cable and overload conditions when paired with the appropriate load cell electronics with setpoint relay control, and also be paired with a large digit scoreboard to display the weight on the hook.  By using electronics that has multi-point linearization capabilities the calibration can be done in the field with multiple known weights to improve the overall accuracy of the load limiting crane scale system.

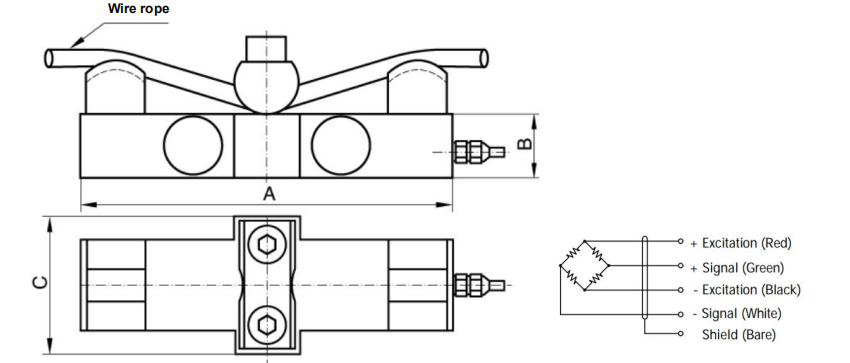

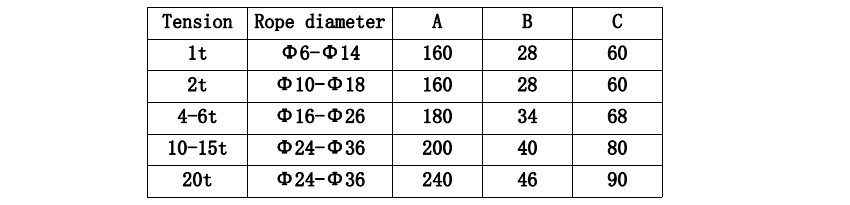

Dimensions in mm


PARAMETER

VALUE

UNIT

Standard capacities (Emax)

50-2000

KG

Rated output-R.O.

2.0

mV/V

Zero balance

1

±% of rated output

Non linearity

0.03

±% of rated output

Hysteresis

0.03

±% of rated output

Non-repeatability

0.02

±% of rated output

Creep error (30 minutes)

0.03

±% of rated output

Zero return (30 minutes)

0.03

±% of rated output

Temperature effect on min. dead load output

0.0026

±% of rated output/℃

Temperature effect on sensitivity

0.0015

±% of rated output/℃

Compensated temperature range

-10 to +40

Operating temperature range

-20 to +60

Safe overload

150

% of R.C

Ultimate overload

200

% of R.C

Excitation, recommended

10

Vdc

Excitation, maximum

15

Vdc

Input resistance

360±10

Ohms

Output resistance

350±3

Ohms

Insulation resistance

5000

Mega-Ohms

Material

Alloy steel


Protection class

IP66
