Rod end load cell

Rod end load cell

The ZMME-L is large capacity in line threaded load cell, used for both tension and compression. The load cell is constructed with nickel plated alloy steel, with good stability. The rated capacity ranges from 100KN-6000KN, widely used in crane and weighing industry.


Features:
Capacity 100KN-6000KN
Two sides thread mounting
Nickel plated alloy steel

Both tension and compression


Optional features:
Customizable dimensions

  • Product Detail
  • Technical Specifications

The ZMME-L is rod end load cell for large capacity, ranging from 100KN-6000KN. There are two thread on the two sides of load cell, which is easy for mounting. The dimensions could be customized based on client's requirements.

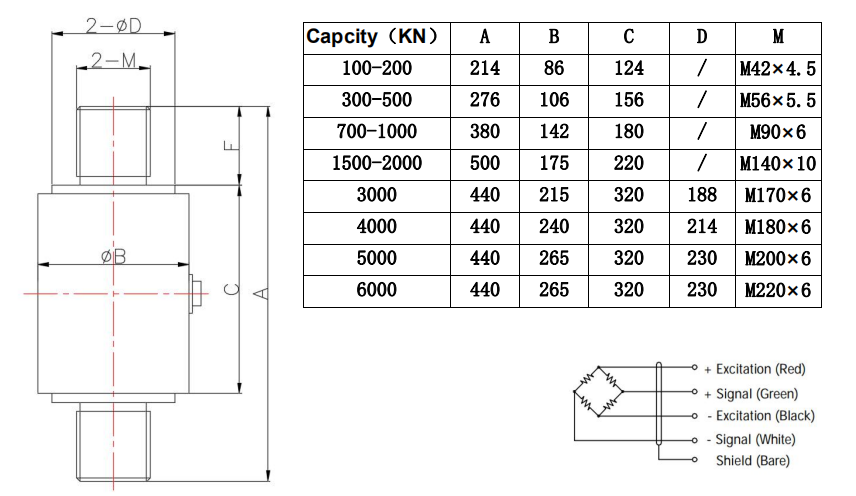

Dimensions in mm

PARAMETER

VALUE

UNIT

Standard capacities (Emax)

100-6000

KN

Rated output-R.O.

1.5

mV/V

Zero balance

1

±% of rated output

Non linearity

0.5

±% of rated output

Hysteresis

0.5

±% of rated output

Non-repeatability

0.02

±% of rated output

Creep error (30 minutes)

0.03

±% of rated output

Zero return (30 minutes)

0.03

±% of rated output

Temperature effect on min. dead load output

0.0026

±% of rated output/℃

Temperature effect on sensitivity

0.0015

±% of rated output/℃

Compensated temperature range

-10 to +40

Operating temperature range

-20 to +60

Safe overload

150

% of R.C

Ultimate overload

200

% of R.C

Excitation, recommended

10

Vdc

Excitation, maximum

15

Vdc

Input resistance

720±20

Ohms

Output resistance

700±3

Ohms

Insulation resistance

5000

Mega-Ohms

Material

Alloy steel


Protection class

IP67
