Crane pull tension load cell

Crane pull tension load cell

The ZMBH is tension load cell alloy steel IP67 protected load cell. The capacity ranges from 2t-70t. It is widely used in crane scales.


Features:
Capacity 2t-70t
High accuracy
Easy installation

Nickel plated alloy steel


Optional features:
Stainless steel construction


  • Product Detail
  • Technical Specifications

The ZMBH is tension load cell alloy steel IP67 protected load cell. It perfectly fits for use in industrial applications such as high capacity crane scales and testing equipment.

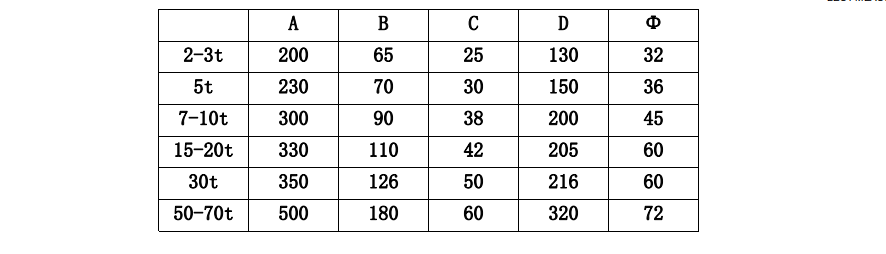

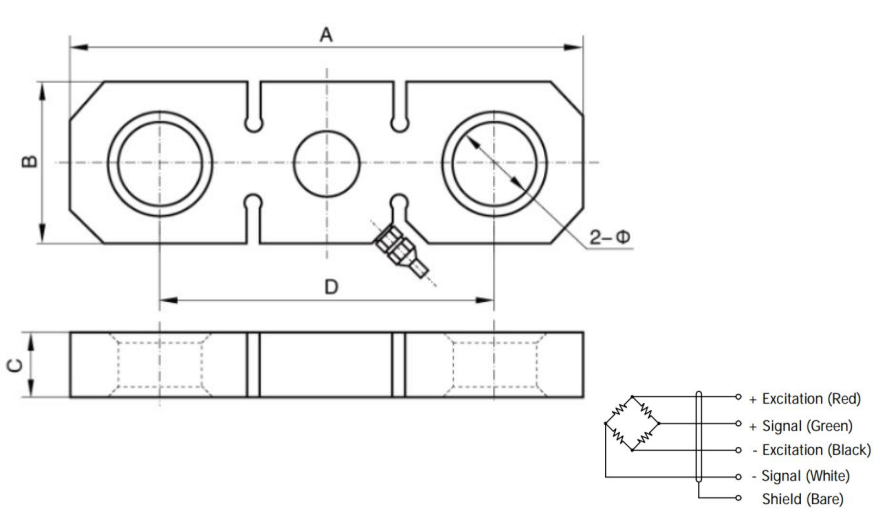

Dimensions in mm



PARAMETER

VALUE

UNIT

Standard capacities (Emax)

2-70

T

Rated output-R.O.

2.0

mV/V

Zero balance

1

±% of rated output

Non linearity

0.05

±% of rated output

Hysteresis

0.03

±% of rated output

Non-repeatability

0.02

±% of rated output

Creep error (30 minutes)

0.03

±% of rated output

Zero return (30 minutes)

0.03

±% of rated output

Temperature effect on min. dead load output

0.0026

±% of rated output/℃

Temperature effect on sensitivity

0.0015

±% of rated output/℃

Compensated temperature range

-10 to +40

Operating temperature range

-20 to +60

Safe overload

150

% of R.C

Ultimate overload

200

% of R.C

Excitation, recommended

10

Vdc

Excitation, maximum

15

Vdc

Input resistance

370±20

Ohms

Output resistance

350±3

Ohms

Insulation resistance

5000

Mega-Ohms

Material

Alloy steel


Protection class

IP67
