Alloy steel shear beam load cell

Alloy steel shear beam load cell

The ZMXE is a high accuracy, low profile bending beam available in a wide range of capacities. The ZMXE is widely used in platform weighing machines, pallet truck scales, tank and vessel weighing systems, conveyor scales and patient weighing systems such as intensive care beds and wheelchair scales.



Features:
Capacity 50kg-10t
High accuracy
Cost-effective

Nickel plated alloy steel


Optional features:
Load foot available


  • Product Detail
  • Technical Specifications
The ZMXE is a high accuracy, low profile bending beam available in a wide range of capacities. The ZMXE is widely used in platform weighing machines, pallet truck scales, tank and vessel weighing systems, conveyor scales and patient weighing systems such as intensive care beds and wheelchair scales.

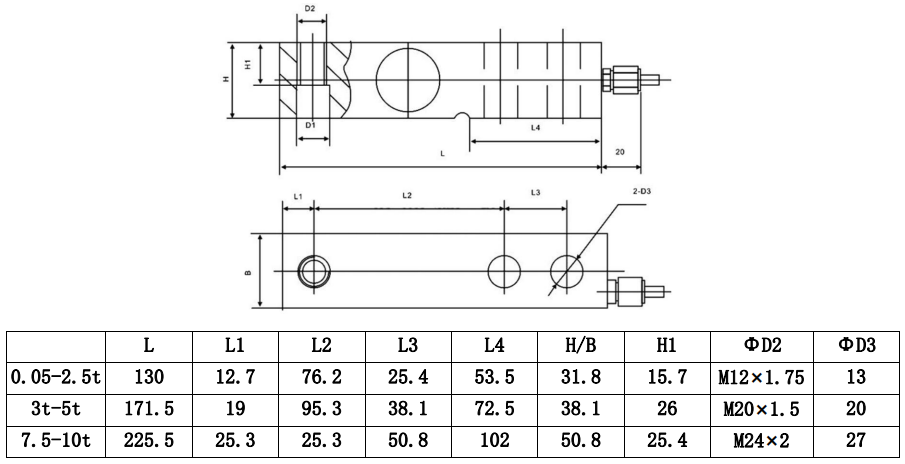

Dimensions in mm


PARAMETER

VALUE

UNIT

Standard capacities (Emax)

50-10000

KG

Rated output-R.O.

2.0

mV/V

Zero balance

1

±% of rated output

Non linearity

0.03

±% of rated output

Hysteresis

0.03

±% of rated output

Non-repeatability

0.02

±% of rated output

Creep error (30 minutes)

0.03

±% of rated output

Zero return (30 minutes)

0.03

±% of rated output

Temperature effect on min. dead load output

0.0026

±% of rated output/℃

Temperature effect on sensitivity

0.0015

±% of rated output/℃

Compensated temperature range

-10 to +40

Operating temperature range

-20 to +60

Safe overload

150

% of R.C

Ultimate overload

200

% of R.C

Excitation, recommended

10

Vdc

Excitation, maximum

15

Vdc

Input resistance

370±20

Ohms

Output resistance

350±3

Ohms

Insulation resistance

5000

Mega-Ohms

Material

Alloy steel


Protection class

IP67
