The ZMHBZB is load cell pin widely used for ports, terminals and cargo cranes as well as hoist, lifting equipment and safety test applications. The 17-4PH construction enables load cell achieve IP68 protection class. The capacity and dimension can be designed based on customer's requirements. The ZMHBZB has very good accuracy and long-term stability.
Crane, hoist and lifting applications
The ZMHBZB load cell pin is designed for hoist, crane and lifting equipment. Constructed with stainless steel, the load cell has very good protection to against humidity and dust. The load pin can be customized based on client's dimension.

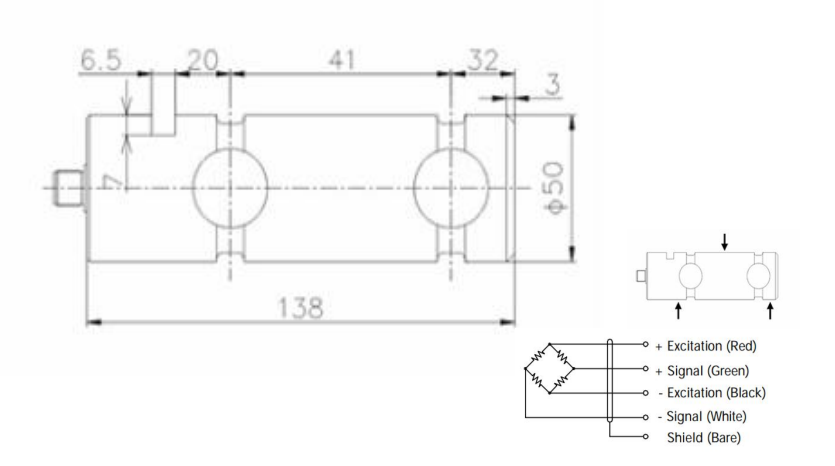

Dimensions in mm
|
PARAMETER |
VALUE |
UNIT |
|
Standard capacities (Emax) |
50KN |
KN |
|
Rated output-R.O. |
1.0 |
mV/V |
|
Zero balance |
1 |
±% of rated output |
|
Non linearity |
0.5 |
±% of rated output |
|
Hysteresis |
0.5 |
±% of rated output |
|
Non-repeatability |
0.02 |
±% of rated output |
|
Creep error (30 minutes) |
0.03 |
±% of rated output |
|
Zero return (30 minutes) |
0.03 |
±% of rated output |
|
Temperature effect on min. dead load output |
0.0026 |
±% of rated output/℃ |
|
Temperature effect on sensitivity |
0.0015 |
±% of rated output/℃ |
|
Compensated temperature range |
-10 to +40 |
℃ |
|
Operating temperature range |
-20 to +60 |
℃ |
|
Safe overload |
150 |
% of R.C |
|
Ultimate overload |
200 |
% of R.C |
|
Excitation, recommended |
10 |
Vdc |
|
Excitation, maximum |
15 |
Vdc |
|
Input resistance |
720±20 |
Ohms |
|
Output resistance |
700±3 |
Ohms |
|
Insulation resistance |
5000 |
Mega-Ohms |
|
Material |
Stainless steel |
|
|
Protection class |
IP68 |
|
