Weight sensor signal transmitter

Weight sensor signal transmitter

The transmitter adopts aluminum alloy shell, and the internal high-performance devices are used to precisely amplify the sensor output signal. Convert mechanical signal into standard current and voltage output, switchable 0-5V, 0-10V, 4-20mA, 0-20mA. It can be directly connected with interfaces such as PLC single-chip computer terminal of automatic control equipment.


Features:
Excitation 15-30V DC
Output 4-20mA, 0-5V, 0-10V
Accuracy 0.1%F.S.
Collection rate 100KHZ
Easy connection

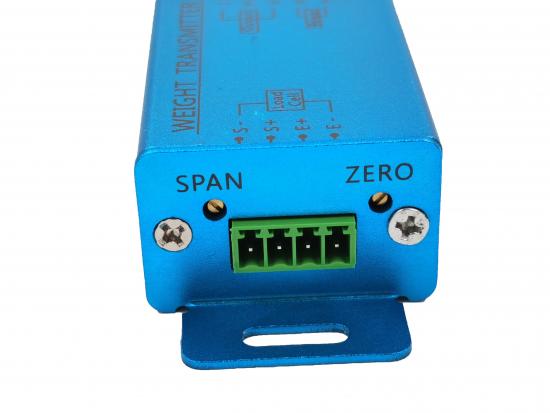

Potentionmeter adjustment

  • Product Detail
  • Technical Specifications

Excitation: 15-30V DC

Rating: ≥100KHz

Sensor input: 0.5-4mv/v

Accuracy: 0.1%F.S

Operating temperature: -30℃-80℃

Ouput: 0-±5V/0-±10V/0-20mA/4-20mA

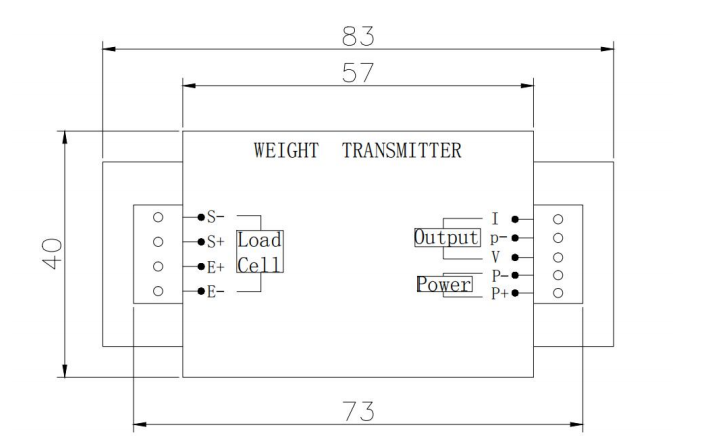

Dimensions in mm
