Crane load cell pin

Crane load cell pin

The ZMHBZ is a kind of load pin widely used in weighing industrial. Zhimin offers custom solutions which help you design your unique load cell application. In order to reduce your cost, zhimin can produce sensors according to your current products. Our aim is to provide best solutions for your precious clients.



Features:
Capacity 1t-5t
Shaft pin
Cost-effective

Nickel plated alloy steel


Optional features:
Optional output(4-20mA, 0-5V)


  • Product Detail
  • Technical Specifications
The ZMHBZ load cell pin extend across a wide array of industries. They include crane and hoist load/condition monitoring (where they often get referred to as a crane load cell) as well as numerous applications in the fields of safety, industrial measurement, and mobile machinery.

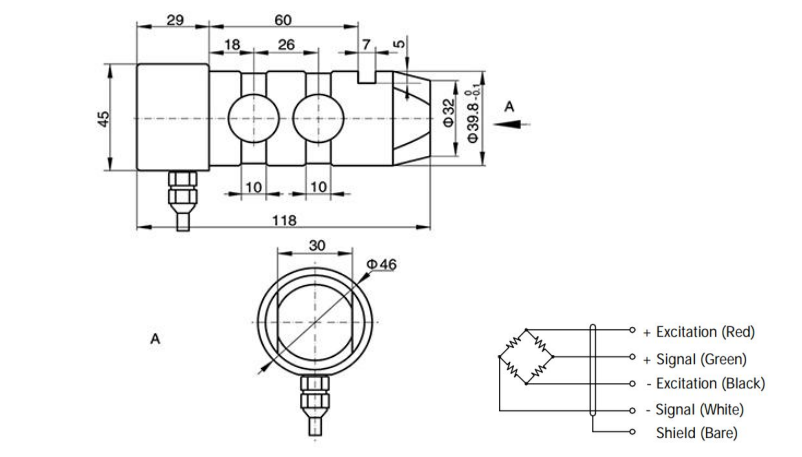

Dimensions in mm


PARAMETER

VALUE

UNIT

Standard capacities (Emax)

1-5

T

Rated output-R.O.

2.0

mV/V

Zero balance

1

±% of rated output

Non linearity

0.2

±% of rated output

Hysteresis

0.1

±% of rated output

Non-repeatability

0.05

±% of rated output

Creep error (30 minutes)

0.03

±% of rated output

Zero return (30 minutes)

0.03

±% of rated output

Temperature effect on min. dead load output

0.0026

±% of rated output/℃

Temperature effect on sensitivity

0.0015

±% of rated output/℃

Compensated temperature range

-10 to +40

Operating temperature range

-20 to +60

Safe overload

150

% of R.C

Ultimate overload

200

% of R.C

Excitation, recommended

10

Vdc

Excitation, maximum

15

Vdc

Input resistance

370±20

Ohms

Output resistance

350±3

Ohms

Insulation resistance

5000

Mega-Ohms

Material

Alloy steel


Protection class

IP66
