Dual range shaft torque sensor

Dual range shaft torque sensor

The ZMZNJ is dual range shaft torque sensor. The torque sensor measures shaft-shaft type connection, measuring torsion by strain gages. There are both analog and digital output signals available for evaluation. The stainless steel construction is optional.


Features:
Capacity 100Nm-5000Nm
High precision
Easy and fast installation

Nickel plated alloy steel


Optional features:
Stainless steel construction

  • Product Detail
  • Technical Specifications
The ZMZNJ is static non-rotating torque transducer. The torque sensor measures shaft-shaft type connection, measuring torque by strain gages.  There are both analog and digital output signals available for evaluation. The stainless steel construction is optional.

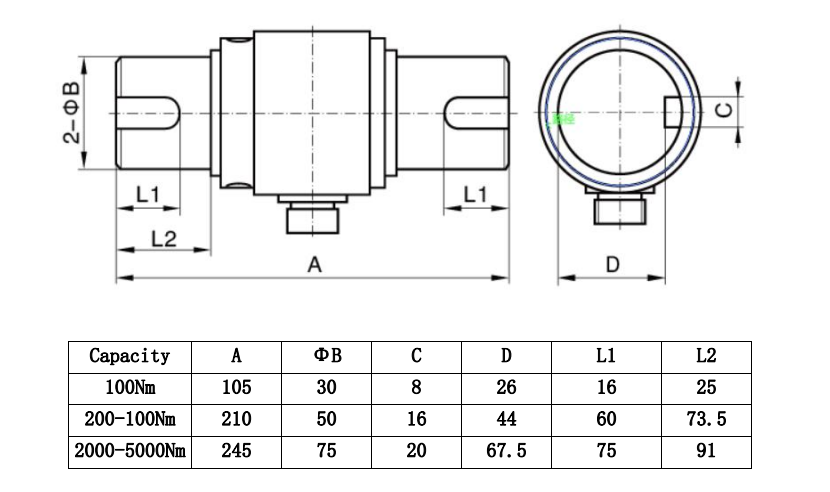

Dimensions in mm


PARAMETER

VALUE

UNIT

Standard capacities (Emax)

100-5000

Nm

Rated output-R.O.

1.0~2.0

mV/V

Zero balance

1

±% of rated output

Non linearity

0.3

±% of rated output

Hysteresis

0.3

±% of rated output

Non-repeatability

0.1

±% of rated output

Creep error (30 minutes)

0.03

±% of rated output

Zero return (30 minutes)

0.03

±% of rated output

Temperature effect on min. dead load output

0.0026

±% of rated output/℃

Temperature effect on sensitivity

0.0015

±% of rated output/℃

Compensated temperature range

-10 to +40

Operating temperature range

-20 to +60

Safe overload

150

% of R.C

Ultimate overload

200

% of R.C

Excitation, recommended

10

Vdc

Excitation, maximum

15

Vdc

Input resistance

370±20

Ohms

Output resistance

350±3

Ohms

Insulation resistance

5000

Mega-Ohms

Material

Alloy steel


Protection class

IP66
