Dual flange torque transducer

Dual flange torque transducer

Flange to flange torque sensor ZMFNJ is a non-rotating type torque transducer that converts a torsional mechanical input into an electrical output signal. ZMFNJ can be used in both clockwise and counterclockwise direction ranging from 5Nm up to 10000Nm. The measuring range and dual flange size can be customized to meet customer’s requirements.



Features:
Capacity 5Nm-10000Nm
Static torsion measure
Rational outputs
Nickel plated alloy steel
Optional features
Hermetically sealed available


  • Product Detail
  • Technical Specifications

1. Flange to flange torque sensor ZMFNJ is a non-rotating type torque transducer that converts a torsional mechanical input into an electrical output signal.


2. ZMFNJ can be used in both clockwise and counterclockwise direction ranging from 5Nm up to 10000Nm.


3. The measuring range and dual flange size can be customized to meet customer’s requirements.

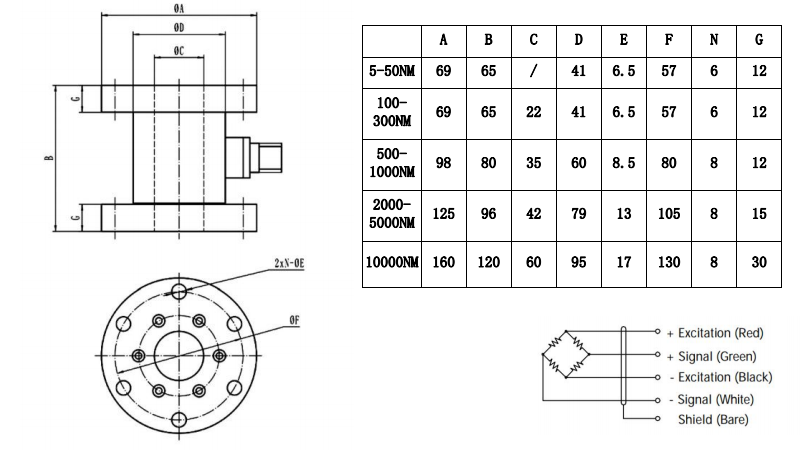

Dimensions in mm


PARAMETER

VALUE

UNIT

Standard capacities (Emax)

5-10000

Nm

Rated output-R.O.

2.0

mV/V

Zero balance

1

±% of rated output

Non linearity

0.2

±% of rated output

Hysteresis

0.1

±% of rated output

Non-repeatability

0.05

±% of rated output

Creep error (30 minutes)

0.03

±% of rated output

Zero return (30 minutes)

0.03

±% of rated output

Temperature effect on min. dead load output

0.0026

±% of rated output/℃

Temperature effect on sensitivity

0.0015

±% of rated output/℃

Compensated temperature range

-10 to +40

Operating temperature range

-20 to +60

Safe overload

150

% of R.C

Ultimate overload

200

% of R.C

Excitation, recommended

10

Vdc

Excitation, maximum

15

Vdc

Input resistance

380±10

Ohms

Output resistance

350±3

Ohms

Insulation resistance

5000

Mega-Ohms

Material

Alloy steel


Protection class

IP66
