2 axis compression and torque force sensor

2 axis compression and torque force sensor

The ZM2DW force sensor F, M utilizes independent wheatstone full bridge for each axis which provides mV/V output proportional to the applied force and requires no mathematical manipulation. Typical applications for this type of transducer are for example force exertion control in robotics, automotive crash testing, industrial test benches, grinding force control, actuator operating force measurement,etc.



Features:
F from 20N to 2000N
M from 1N.m to 50N.m
Low crosstalk

Compact size


Optional features:
0-5V output signal


  • Product Detail
  • Technical Specifications
The ZM2DW 2 Axis Force Sensors can measure two or more axis at the same time. These sensors are especially developed for applications that require a simultaneous multi axis measurement of several forces and moments or the changing of position and direction over time. Typical multi axis load cells applications are found in the offshore industry, industrial test benches and crash testing.

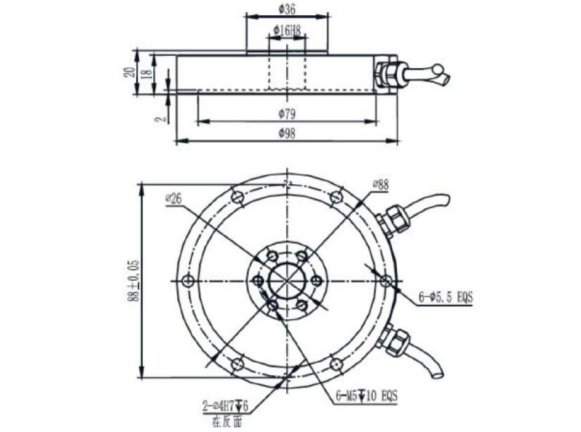

Dimensions in mm



PARAMETER

VALUE

UNIT

Material

Alloy steel


Capacity

F:20/30/50/100/200/500/1000/2000 M: 1/2/3/5/10/20/30/50

N/N.m

Sensitivity F-Axis

0.5-1.0

mV/V

Sensitivity M-Axis

0.5-1.0

mV/V

Zero balance

1

±% of rated output

Input resistance F-Axis

350±5

Ohms

Output resistance F-Axis

350±5

Ohms

Input resistance M-Axis

350±5

Ohms

Output resistance M-Axis

350±5

Ohms

Insulation resistance

5000

Mega-Ohms

Accuracy

1

±% of rated output

Non linearity

0.2

±% of rated output

Hysteresis

0.05

±% of rated output

Temperature effect on min. dead load output

0.0026

±% of rated output/℃

Temperature effect on sensitivity

0.0015

±% of rated output/℃

Creep error (30 minutes)

0.03

±% of rated output

Crosstalk from F to M

1

±% of rated output

Safe overload

150

% of R.C

Ultimate overload

300

% of R.C

Excitation, recommended

10

Vdc

Compensated temperature range

-10 to +40

Operating temperature range

-20 to +60
