6 axis force torque load cell

6 axis force torque load cell

The ZM6DW is 6 axis force torque load cell. The  load cell Fxyz and Mxyz utilize independent wheatstone full bridge for each axis which provides mV/V output proportional to the applied force and requires no mathematical manipulation. Typical applications for this type of transducer are for example force exertion control in robotics, automotive crash testing, industrial test benches, grinding force control, actuator operating force measurement,etc.


Features:
Capacity 5KN-15KN; 250Nm-1200Nm
6 axis-Fxyz, Mxyz independent bridges
Low crosstalk

Compact size


Optional features:
0-5V output signal


  • Product Detail
  • Technical Specifications

The ZM6DW is force and torque sensor in all 6 axis. The compact size makes load cell can be used in many applications. The sensor has low crosstalk and temperature compensated.

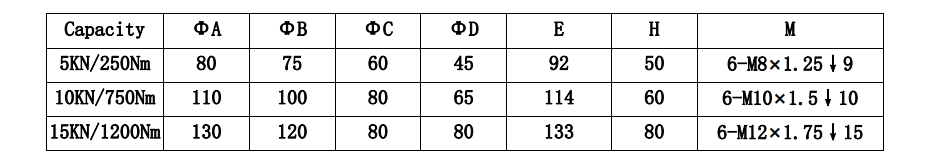

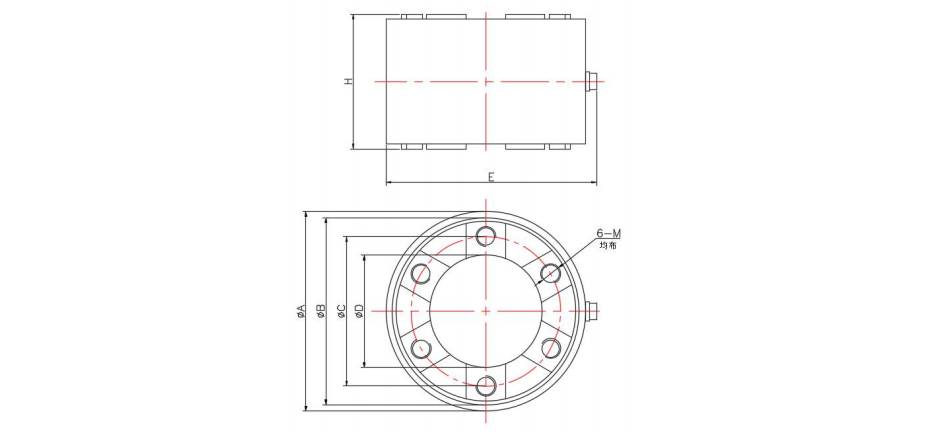

Dimensions in mm


PARAMETER

VALUE

UNIT

Material

Alloy steel


Capacity

5KN,10KN,15KN/250Nm,750Nm,1200Nm

KN/Nm

Sensitivity X-Axis

0.5-1.0

mV/V

Sensitivity Y-Axis

0.5-1.0

mV/V

Sensitivity Z-Axis

0.5-1.0

mV/V

Zero balance

1

±% of rated output

Input resistance X,Y-Axis

350±5

Ohms

Output resistance X,Y-Axis

350±5

Ohms

Input resistance Z-Axis

350±5

Ohms

Output resistance Z-Axis

350±5

Ohms

Insulation resistance

5000

Mega-Ohms

Accuracy

1

±% of rated output

Non linearity

0.2

±% of rated output

Hysteresis

0.05

±% of rated output

Temperature effect on min. dead load output

0.0026

±% of rated output/℃

Temperature effect on sensitivity

0.0015

±% of rated output/℃

Creep error (30 minutes)

0.03

±% of rated output

Crosstalk from X to Y

1

±% of rated output

Crosstalk from Y to X

1

±% of rated output

Crosstalk from Z to X/Y

1

±% of rated output

Crosstalk from X/Y to Z

2

% of R.C

Safe overload

150

% of R.C

Ultimate overload

300

% of R.C

Excitation, recommended

10

Vdc

Compensated temperature range

-10 to +40

Operating temperature range

-20 to +60
