Miniature force sensor
Home

Load Cells

Miniature force sensor

subminiature load cell

subminiature load cell

ZMMA-YS is mini type force transducer, widely used on UTM and compression&tension force applications.


Features:

Capacity 10N,20N,30N,50N,100N
Compact size
Stainless steel construction

Both compression and tension


Optional features:
0-5V, 4-20mA output signal
  • Product Detail
  • Technical Specifications

ZMMA-YS is configured for compression and tension force measurement. Full-bridge, bonded foil strain gauge technology provides excellent long-term stability and ensures high performance even in applications requiring in excess of 1 million load cycles. Constructed from stainless steel and protected from moisture with an epoxy bonded cover. Small diamter and compatc size make ZMMA-YS widely used on robots and automation small force test.

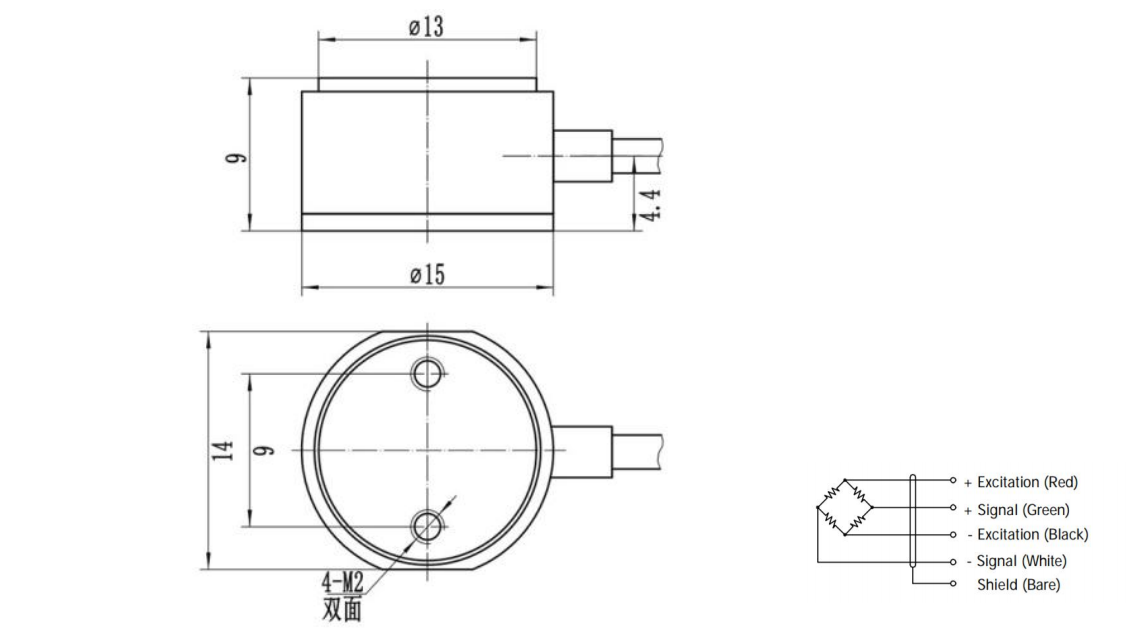

Dimesnion:


PARAMETER

VALUE

UNIT

Standard capacities (Emax)

5,10,20,50,100

N

Rated output-R.O.

1.0

mV/V

Zero balance

1

±% of rated output

Non linearity

0.3

±% of rated output

Hysteresis

0.3

±% of rated output

Non-repeatability

0.2

±% of rated output

Creep error (30 minutes)

0.05

±% of rated output

Zero return (30 minutes)

0.03

±% of rated output

Temperature effect on min. dead load output

0.0026

±% of rated output/℃

Temperature effect on sensitivity

0.0015

±% of rated output/℃

Compensated temperature range

-10 to +40

Operating temperature range

-20 to +60

Safe overload

150

% of R.C

Ultimate overload

200

% of R.C

Excitation, recommended

10

Vdc

Excitation, maximum

15

Vdc

Input resistance

370±20

Ohms

Output resistance

350±3

Ohms

Insulation resistance

5000

Mega-Ohms

Material

Stainless steel


Protection class

IP66
