Column S type load cell

Column S type load cell

The ZMZS coulmn S type tension load cell offers a wide range of capacities, extending from 1KN to 200KN. Constructed from alloy steel with an electroless nickel-plated surface, it’s a robust and reliable choice. We provide optional amplifer which converts analog sigal into 4-20mA, 0-5V or 0-10V.



Features:
Capacity 1KN-200KN
S beam structure with high accuracy
Rational outputs

Nickel plated alloy steel


Optional features:
Stainless steel construction


  • Product Detail
  • Technical Specifications
The ZMZS coulmn S type tension load cell offers a wide range of capacities, extending from 1KN to 200KN. The inner thread makes load cell easy to be installed. The ZMZS has high accuracy and long-term stability.

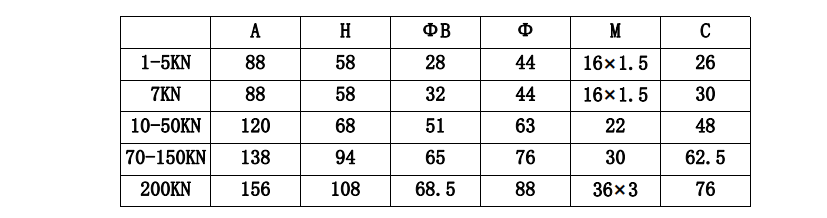

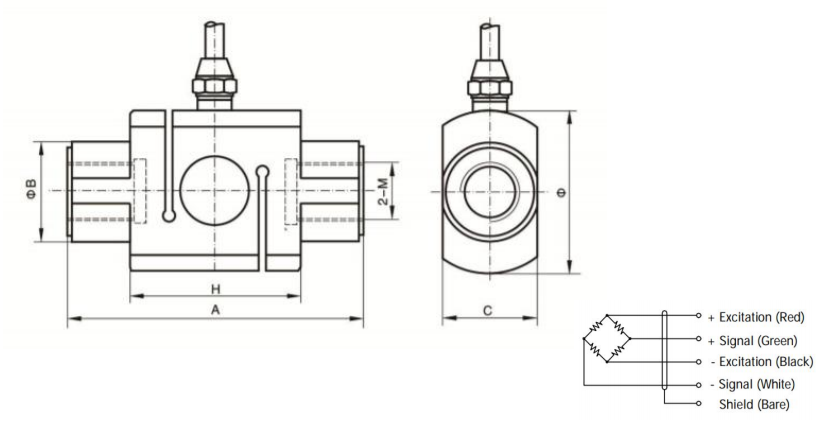

Dimensions in mm


PARAMETER

VALUE

UNIT

Standard capacities (Emax)

1-200

KN

Rated output-R.O.

2.0

mV/V

Zero balance

1

±% of rated output

Non linearity

0.05

±% of rated output

Hysteresis

0.03

±% of rated output

Non-repeatability

0.03

±% of rated output

Creep error (30 minutes)

0.03

±% of rated output

Zero return (30 minutes)

0.03

±% of rated output

Temperature effect on min. dead load output

0.0026

±% of rated output/℃

Temperature effect on sensitivity

0.0015

±% of rated output/℃

Compensated temperature range

-10 to +40

Operating temperature range

-20 to +60

Safe overload

150

% of R.C

Ultimate overload

200

% of R.C

Excitation, recommended

10

Vdc

Excitation, maximum

15

Vdc

Input resistance

360±10

Ohms

Output resistance

350±3

Ohms

Insulation resistance

5000

Mega-Ohms

Material

Alloy steel


Protection class

IP66
