electronic platform scale weight indicator

electronic platform scale weight indicator

Plastic housing

6-digit 20.2mm red LED

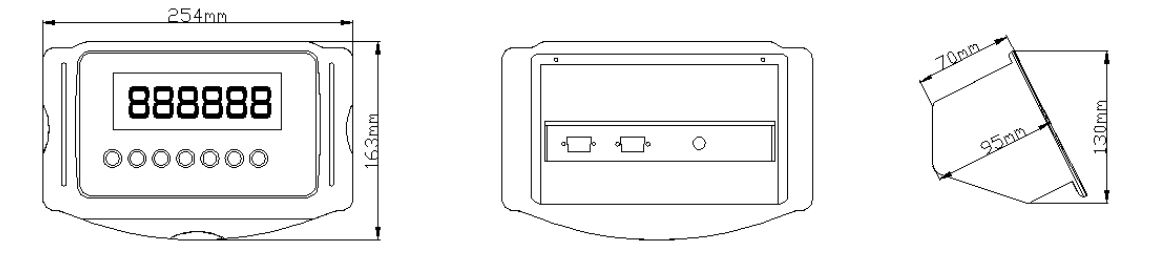

Dimensions:256×165×170mm

Applications:Electronic platform scale, weighing scale

  • Product Detail
  • Technical Specifications

Features

1.Operating temperature: 0℃ to 40℃

2.Storage temperature: -25℃ to 55℃

3.Relative humidity:≤ 85% non–condensing

4.30 hours of full charge battery operation

5.Drive up 4X350Ω or 8X700Ω load cell

6.Manual/Automatic accumulation

7.Programmable zero tracking

8.Programmable digital filter

9.Selectable kg and lb

10.RS-232 serial interface

11.Accuracy can be increased ten times

12.Animal weighing

13.Hold function

14.Counting function

15.Printer





Optional

RS485 serial interface

Two set point function

Four set point function

4-20mA Analog current output function
Mechanical scale
Wireless connection

Blue tooth connection
