Micro S beam load cell

Micro S beam load cell

The S beam load cell provides good restraint to possible movement of the automation and in many cases. The small size gives excellent performance for high capacity loading. The output is rationalized to facilitate multiple-cell application. ZMSA is contructed of stainless steel and is potted to IP67 providing excellent protection against moisture and humidity.


Features:
Capacity 1kg-100kg
Both tension and compression
Rational outputs

Stainless steel


Optional features:
Hermetically sealed available

  • Product Detail
  • Technical Specifications

The ZMSA is smallest S type load cell ranging from 1kg to 100kg. The load cell is used in automation equipment and speical force measure machines. The compact size makes load cell very popular.

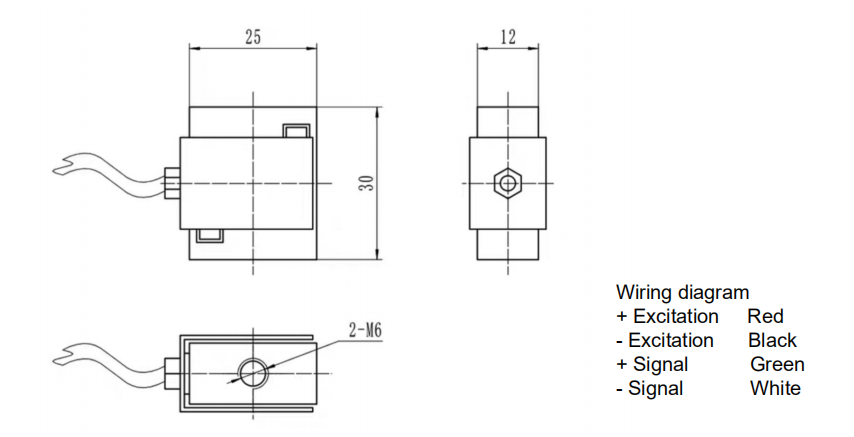

Dimensions in mm

PARAMETER

VALUE

UNIT

Standard capacities (Emax)

1, 2, 3, 5, 10, 20, 30, 50, 100

KG

Rated output-R.O.

1.0-2.0

mV/V

Zero balance

1

±% of rated output

Non linearity

0.05

±% of rated output

Hysteresis

0.05

±% of rated output

Non-repeatability

0.03

±% of rated output

Creep error (30 minutes)

0.05

±% of rated output

Zero return (30 minutes)

0.05

±% of rated output

Temperature effect on min. dead load output

0.0026

±% of rated output/℃

Temperature effect on sensitivity

0.0015

±% of rated output/℃

Compensated temperature range

-10 to +40

Operating temperature range

-20 to +60

Safe overload

150

% of R.C

Ultimate overload

200

% of R.C

Excitation, recommended

10

Vdc

Excitation, maximum

15

Vdc

Input resistance

380±10

Ohms

Output resistance

350±3

Ohms

Insulation resistance

5000

Mega-Ohms

Material

Stainless steel


Protection class

IP67
