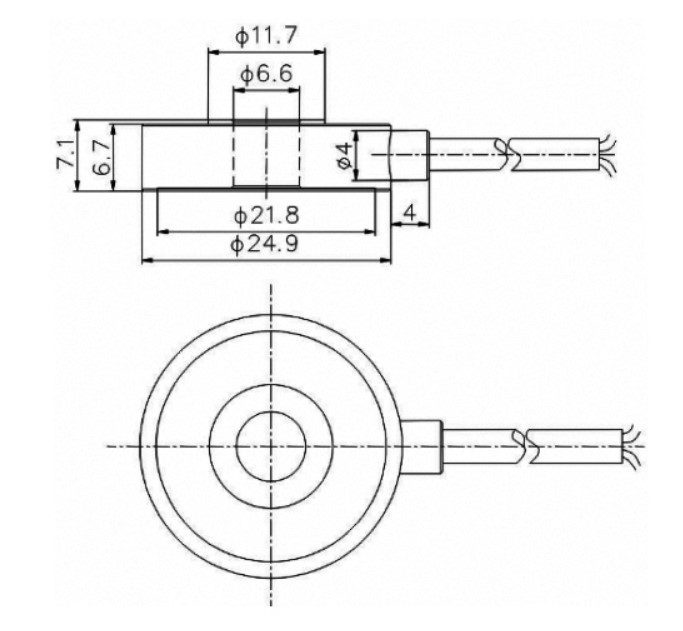

Dimensions in mm
The ZMMC3 is through-hole force sensor which is available in a wide range of standard capacities from 50N through to 1000N. Zhimin offers custom solutions which help you design your unique load cell application. For wahser type load cell, we need to know your required diameter and through hole size. In order to reduce your cost, zhimin can produce sensors according to your current products. Our aim is to provide best solutions for your precious clients.
Stainless steel construction
Dimensions in mm
PARAMETER |
VALUE |
UNIT |
Standard capacities (Emax) |
50-1000 |
N |
Rated output-R.O. |
1.5 |
mV/V |
Zero balance |
1 |
±% of rated output |
Non linearity |
0.25 |
±% of rated output |
Hysteresis |
0.25 |
±% of rated output |
Non-repeatability |
0.1 |
±% of rated output |
Creep error (30 minutes) |
0.05 |
±% of rated output |
Zero return (30 minutes) |
0.05 |
±% of rated output |
Temperature effect on min. dead load output |
0.0026 |
±% of rated output/℃ |
Temperature effect on sensitivity |
0.0015 |
±% of rated output/℃ |
Compensated temperature range |
-10 to +40 |
℃ |
Operating temperature range |
-20 to +60 |
℃ |
Safe overload |
150 |
% of R.C |
Ultimate overload |
200 |
% of R.C |
Excitation, recommended |
10 |
Vdc |
Excitation, maximum |
15 |
Vdc |
Input resistance |
720±20 |
Ohms |
Output resistance |
700±3 |
Ohms |
Insulation resistance |
5000 |
Mega-Ohms |
Material |
Stainless steel |
|
Protection class |
IP66 |
|
