Compression load cell

Donut load cell

The ZMMC4 is donut type force sensor which is available in a wide range of standard capacities from 0.5KN through to 20KN. The ZMMC4 is configured for compression force measurement acting on cylinders, bolts or shafts. A range of internal through-hole diameters is available. The outer and inner diameter can be customized based on client's requirements.



Features:
Capacity 0.5KN-20KN
Low profile and compact size
Through-hole

Stainless steel construction


Optional features:
Customizable dimensions


  • Product Detail
  • Technical Specifications
Zhimin donut style load cells feature a compact, smooth thru-hole design for use in applications which require the load structure to pass through the cell. Offered in either tension or tension / compression models, measuring load ranges from 0.5KN-20KN. Constructed of stainless steel or carbon steel. Special bolt and engine mount force sensor model constructed of aluminum. Typical applications include bolt force measurements, clamping forces, monitoring overloads post or leg mount, and rolling mill systems. If you need special modifications or a complete custom design to meet your unique requirements, please don’t hesitate to contact us.

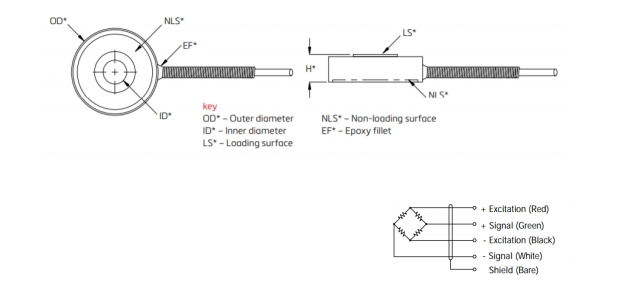

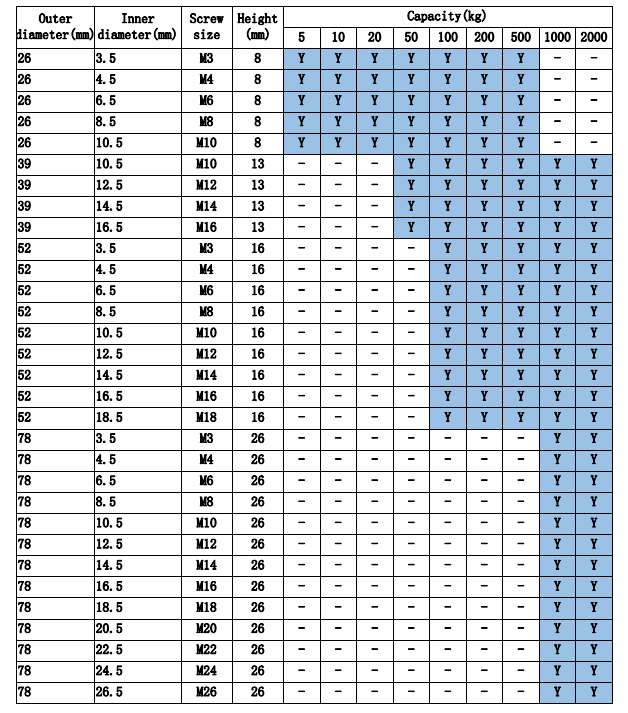

Dimensions in mm


PARAMETER

VALUE

UNIT

Standard capacities (Emax)

0.5-20

KN

Rated output-R.O.

1.5

mV/V

Zero balance

1

±% of rated output

Non linearity

0.2

±% of rated output

Hysteresis

0.2

±% of rated output

Non-repeatability

0.1

±% of rated output

Creep error (30 minutes)

0.03

±% of rated output

Zero return (30 minutes)

0.03

±% of rated output

Temperature effect on min. dead load output

0.0026

±% of rated output/℃

Temperature effect on sensitivity

0.0015

±% of rated output/℃

Compensated temperature range

-10 to +40

Operating temperature range

-20 to +60

Safe overload

150

% of R.C

Ultimate overload

200

% of R.C

Excitation, recommended

10

Vdc

Excitation, maximum

15

Vdc

Input resistance

720±20

Ohms

Output resistance

700±3

Ohms

Insulation resistance

5000

Mega-Ohms

Material

Stainless steel


Protection class

IP66
