The load cell is actually a device that converts the quality signal into a measurable electrical signal output. The actual working environment of the sensor should be considered first when using the sensor. This is very important for the correct selection of the load cell. It is related to the normal operation of the sensor, its safety and service life, and the reliability and safety of the entire weighing instrument. In the basic concepts and evaluation methods of the main technical indicators of load cells, there are qualitative differences between the old and new national standards. There are mainly S type, cantilever type, spoke type, plate ring type, bellows type, bridge type, column cylinder type and other styles.

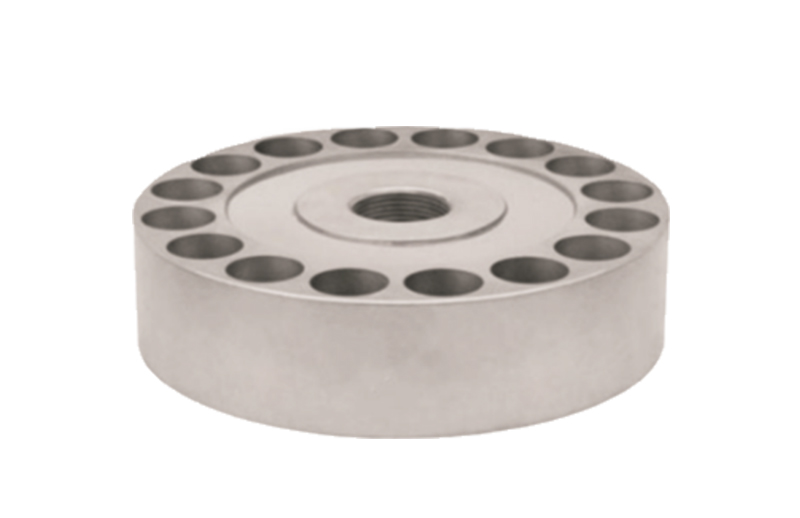

Pancake Load Cells

Pancake load cells are highly accurate and designed to monitor forces in tension or compression. The versatile low profile design integrates into a variety of applications.

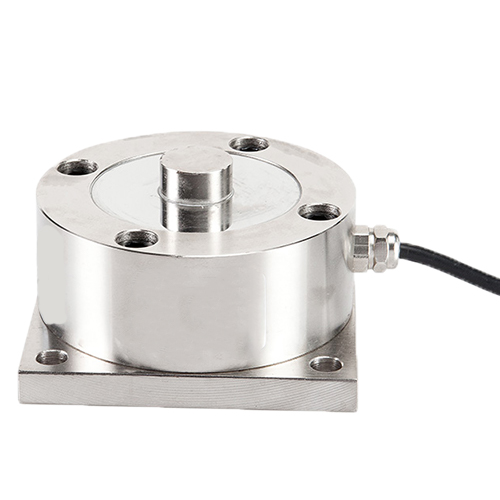

Compression Load Cells

From our heavy duty high accuracy canister load cells to our popular 'button' style miniatures, every compression load cell we manufacture is designed with your needs in mind. We offer ranges from a few grams to millions of pounds, analog or digital output, in-line amplification, a variety of mating and cable assemblies, and mounting options as unique as your application.

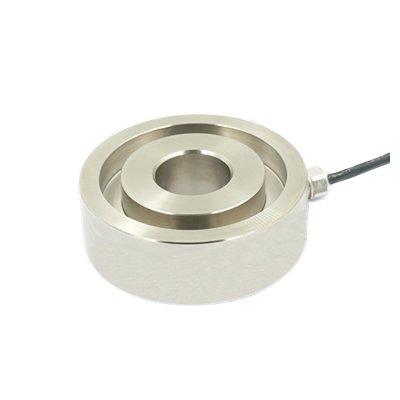

Donut and Through Hole Load Cells

A variation of the compression load cell with a 'through-hole' design for installation around bolts or shafts. Fully welded stainless steel construction and high overload capability for optimum performance. Available for ranges from 100 g up to 100,000 lbs with accuracy from 0.25% to 0.50%.

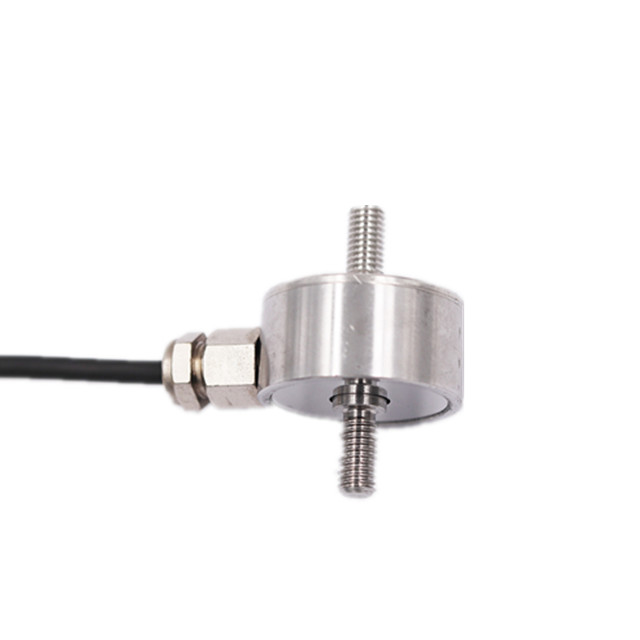

In-line and Rod End Load Cells

Rod end and in-line force measurement is critical in monitoring cranes, hoists and other lifting devices. These bidirectional load cells are available with a variety of thread options, ranges, and outputs for easy integration into new or existing systems. Available with fatigue and safety ratings.

Load Pin

Force sensing load pins are a unique type of load cell designed to replace existing clevis bolts, shear pins, shear axles, pulley shafts, and other load bearing pins. We can provide a form-fit-function load pin replacement that eliminates special fixturing and allows the current clevis configuration to be transformed into a precision load monitoring system. Clevis pins and load pins from tecsis are constructed of all-welded stainless steel. They are shock and vibration resistant and are hermetically sealed to survive in the most severe operating conditions. We offer ranges from 3,000 to 200,000 pounds and accuracies to 0.03%.
